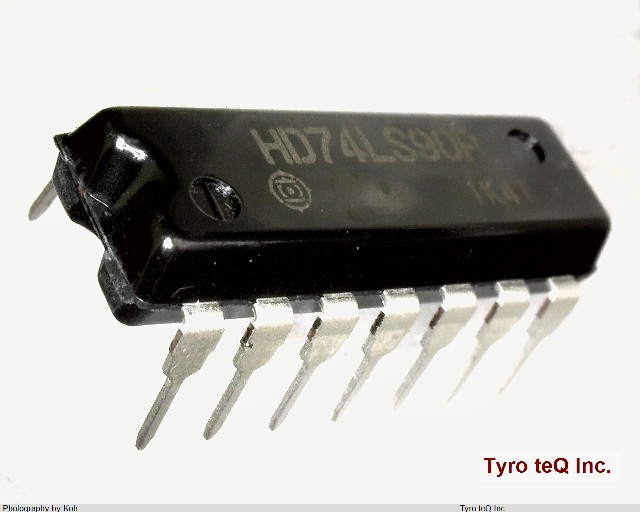

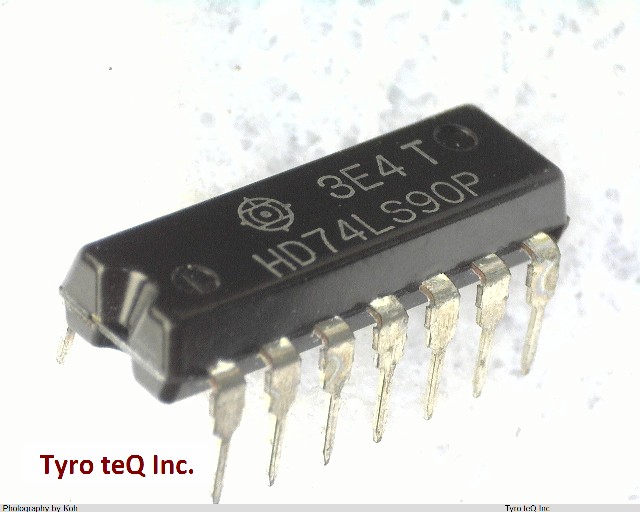

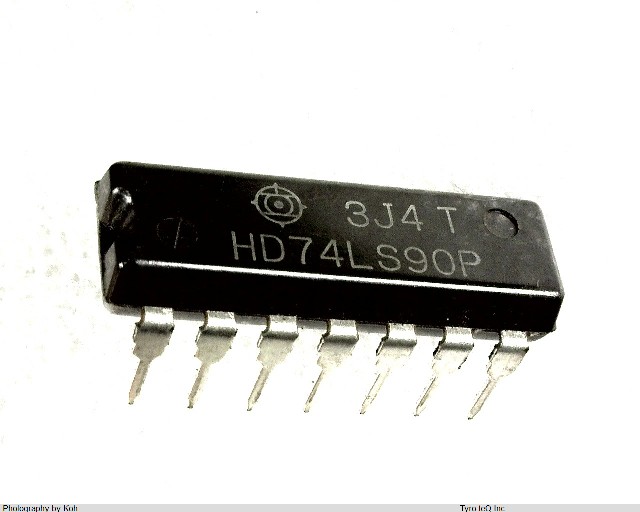

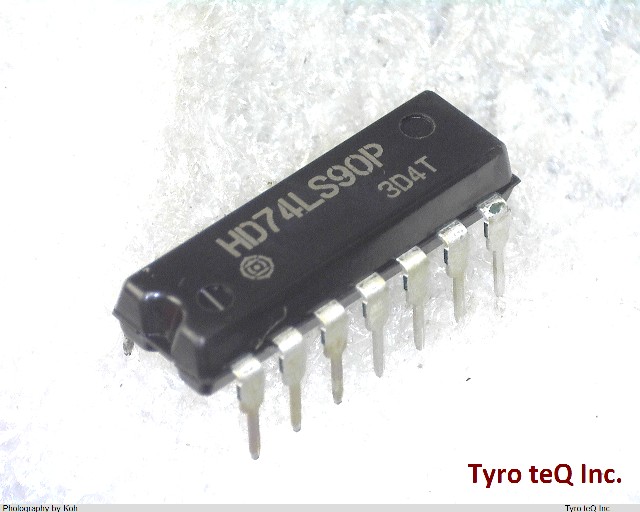

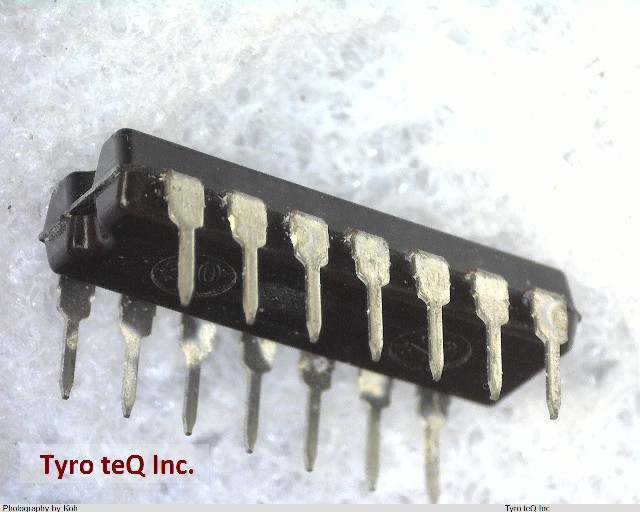

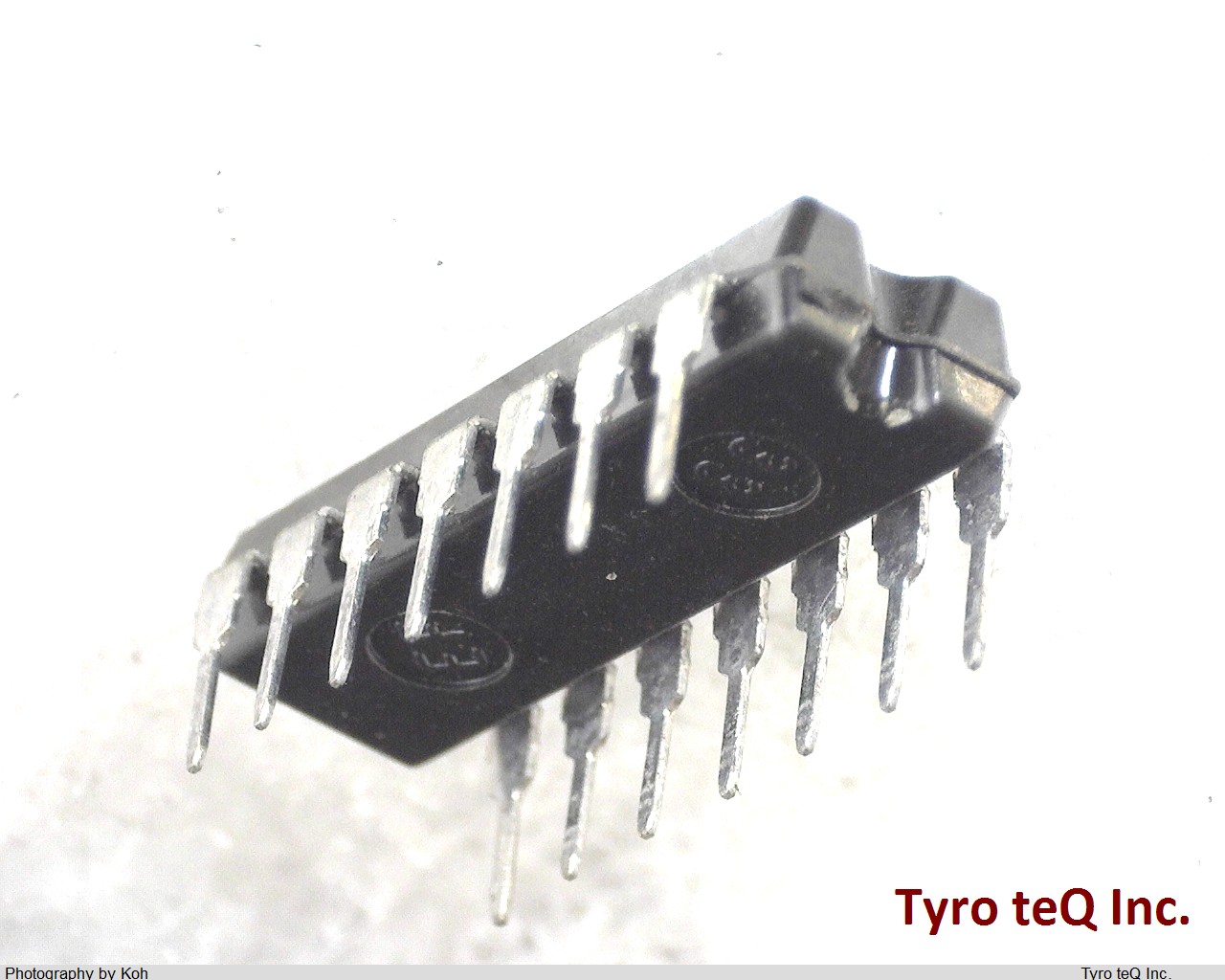

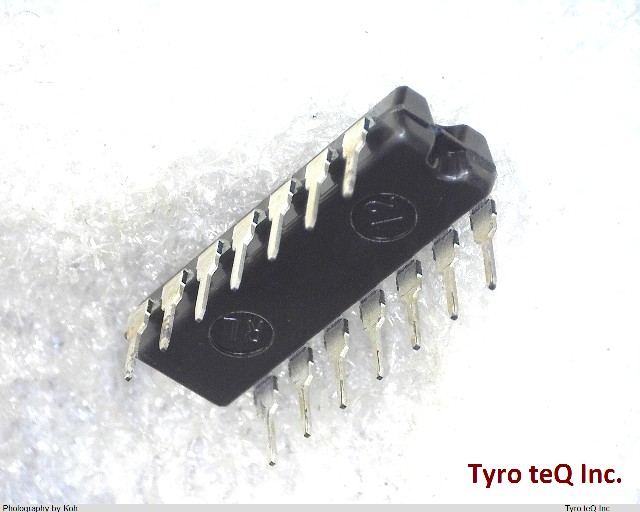

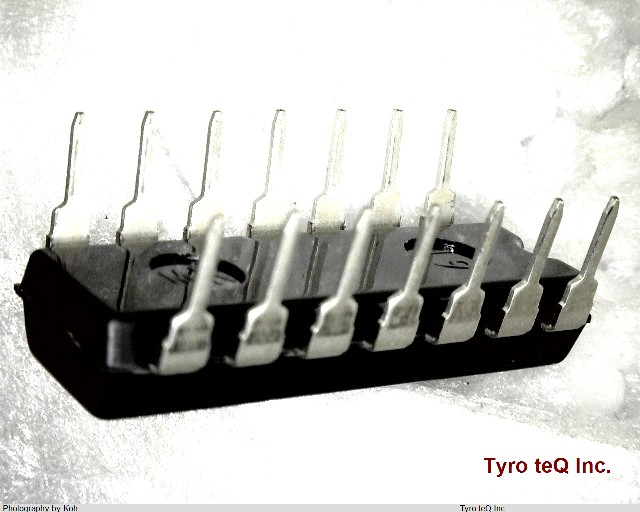

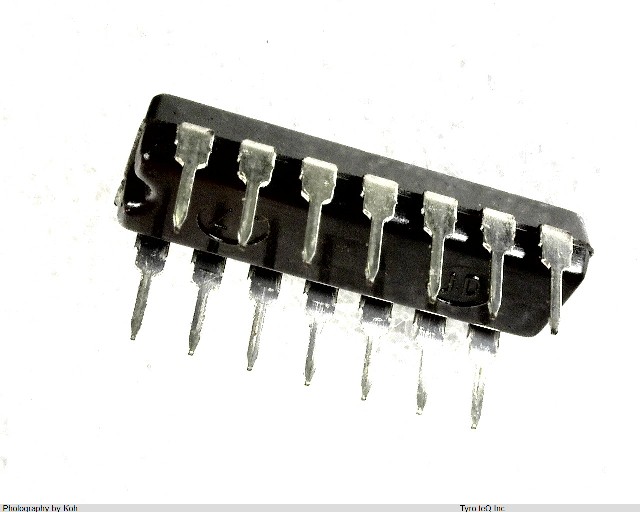

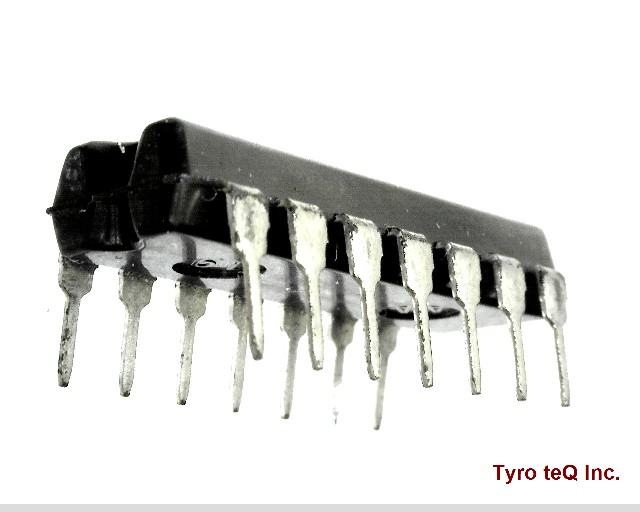

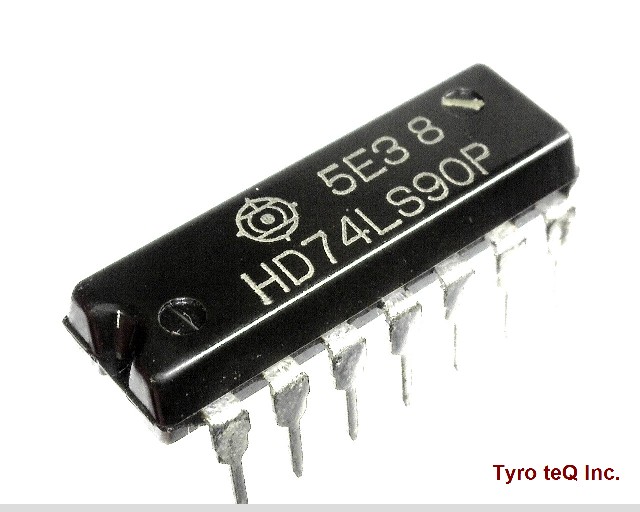

HD74LS90P

Name: HD74LS90P
Brand: HITACHI
SKU: 180151973-0000-0000-0000

HD74LS90P - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：DIP

HD74LS90P の詳細情報

型番	HD74LS90P
メーカー	HITACHI
種別	アドバンストLS-TTL
Additional Feature	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS
Count Direction	UP
Family	LS
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.2 mm
Load/Preset Input	YES
Logic IC Type	DECADE COUNTER
Mode of Operation	ASYNCHRONOUS
Number of Bits	3
Number of Functions	2
Number of Terminals	14
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Propagation Delay (tpd)	50 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Trigger Type	NEGATIVE EDGE
Width	7.62 mm
fmax-Min	42 MHz
