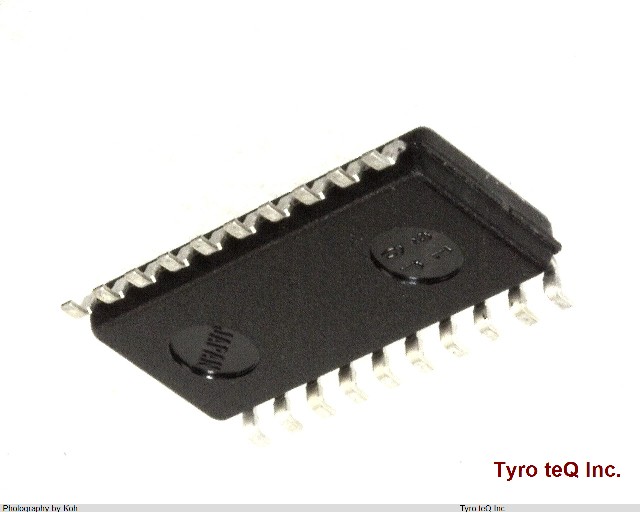

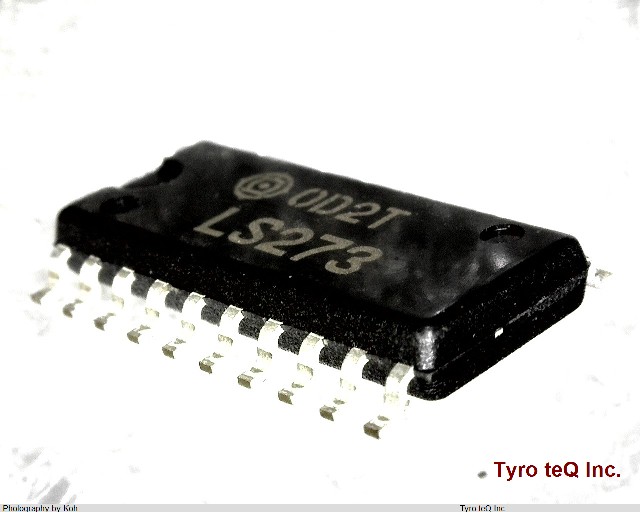

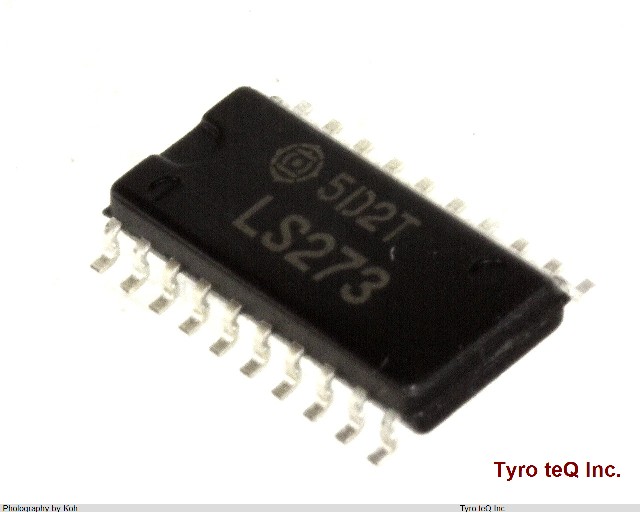

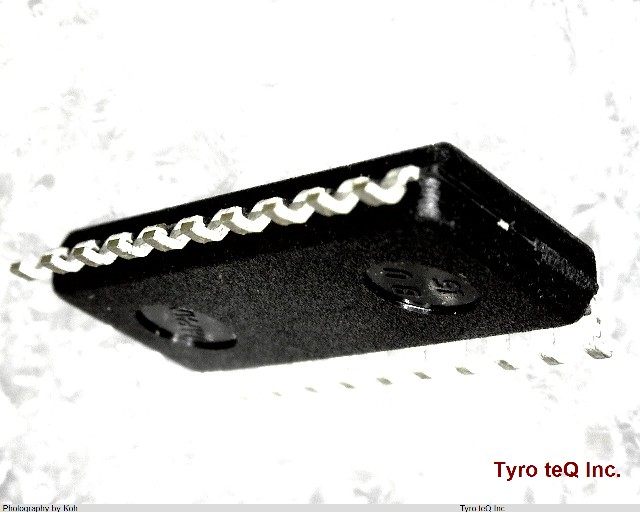

HD74LS273FP

Name: HD74LS273FP
Brand: HITACHI
SKU: 180150461-0000-0000-0000

HD74LS273FP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：SOP(JEITA)

HD74LS273FP の詳細情報

型番	HD74LS273FP
メーカー	HITACHI
種別	アドバンストLS-TTL
Family	LS
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.6 mm
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	30000000 Hz
Max I(ol)	0.008 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	27 mA
Propagation Delay (tpd)	27 ns
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Trigger Type	POSITIVE EDGE
Width	5.5 mm
fmax-Min	30 MHz
