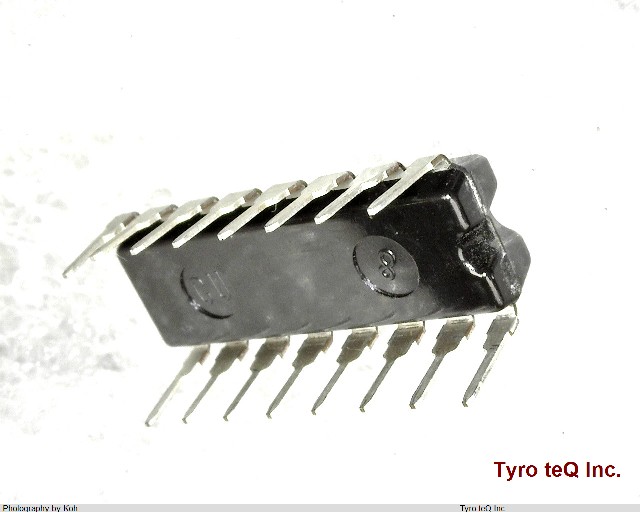

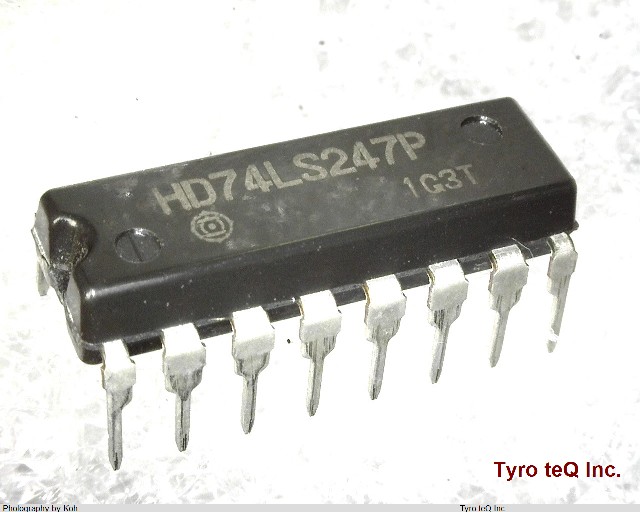

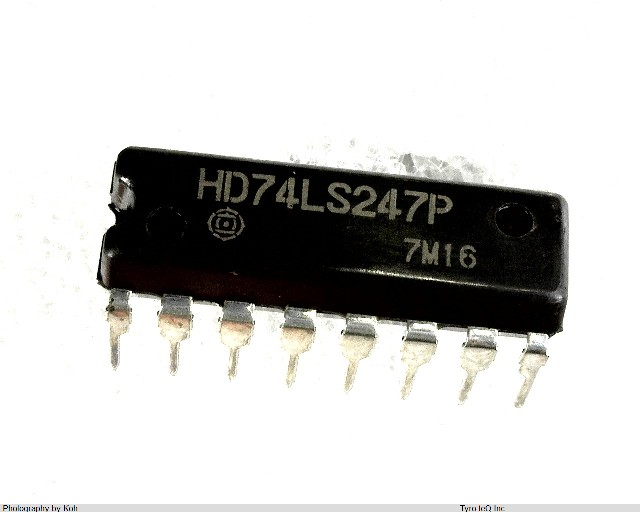

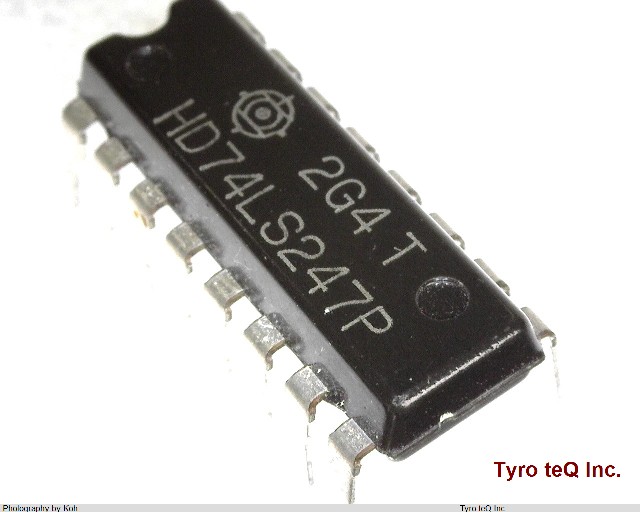

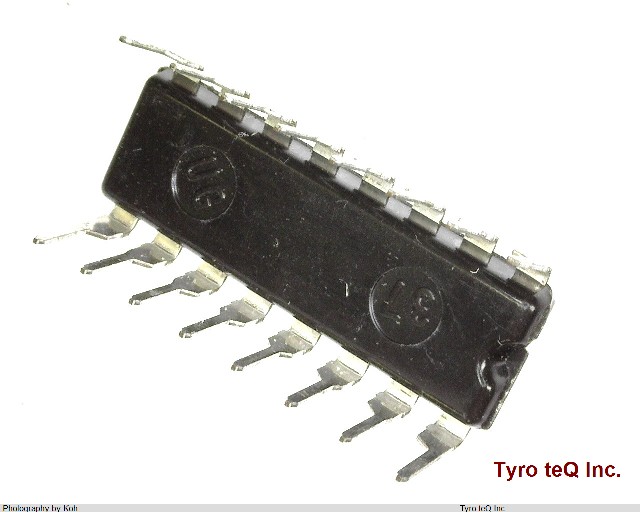

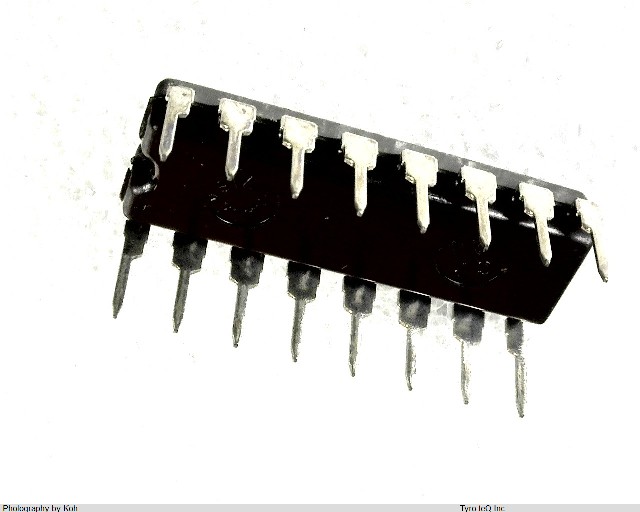

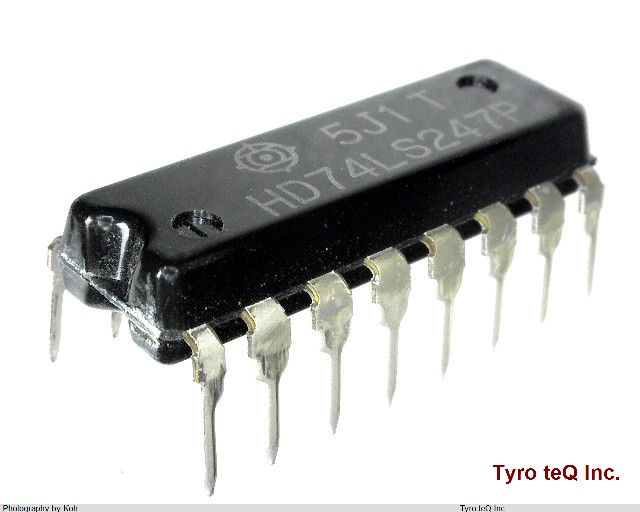

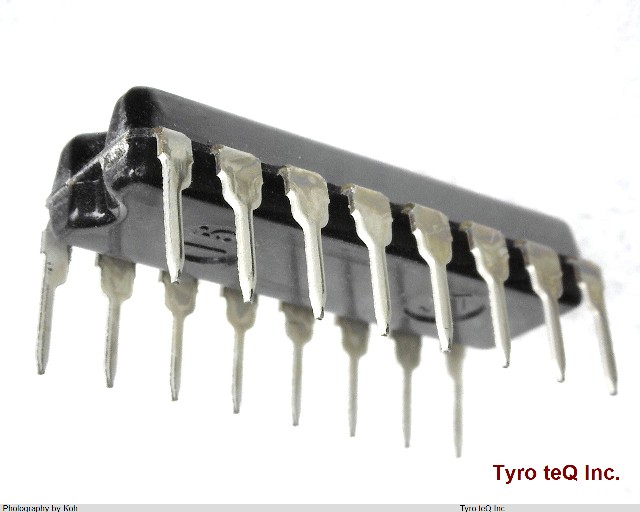

HD74LS247P

Name: HD74LS247P
Brand: HITACHI
SKU: 180150411-0000-0000-0000

HD74LS247P - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：DIP

HD74LS247P の詳細情報

型番	HD74LS247P
メーカー	HITACHI
種別	アドバンストLS-TTL
Family	LS
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.2 mm
Logic IC Type	SEVEN SEGMENT DECODER/DRIVER
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Propagation Delay (tpd)	100 ns
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Sub Category	Decoder/Drivers
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
