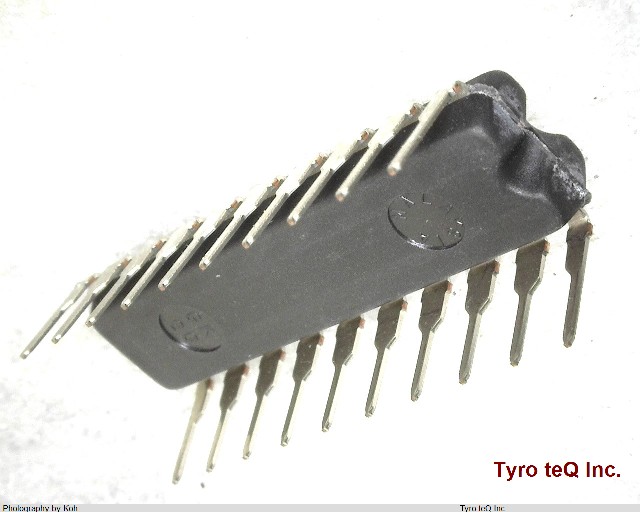

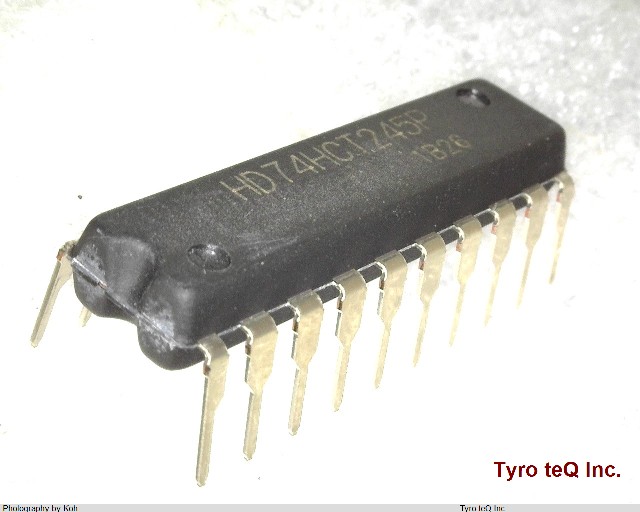

HD74HCT245P

Name: HD74HCT245P
Brand: HITACHI
SKU: 180150524-0000-0000-0000

HD74HCT245P - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：DIP

HD74HCT245P の詳細情報

型番	HD74HCT245P
メーカー	HITACHI
種別	高速CMOS標準ロジックIC
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	HCT
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	24.5 mm
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.006 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Prop. Delay@Nom-Sup	28 ns
Propagation Delay (tpd)	28 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	7.62 mm
