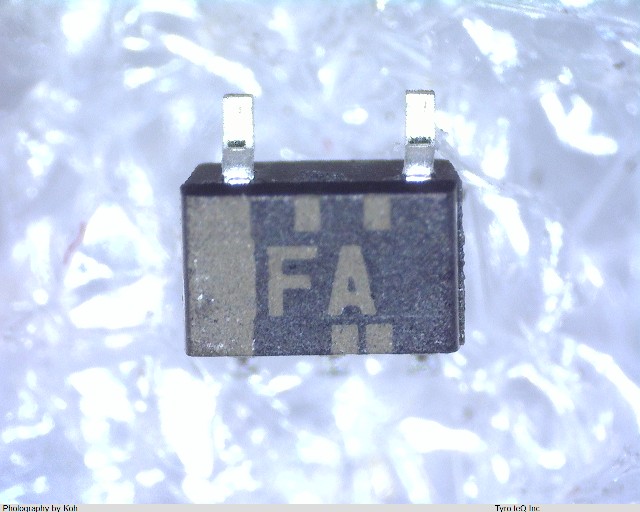

HD74HCT1G14

Name: HD74HCT1G14
Brand: HITACHI
SKU: 180157792-0000-0000-0000

HD74HCT1G14 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC

HD74HCT1G14 の詳細情報

型番	HD74HCT1G14
メーカー	HITACHI
種別	高速CMOS標準ロジックIC
Family	HCT
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.002 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Prop. Delay@Nom-Sup	31 ns
Propagation Delay (tpd)	31 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	1.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	1.25 mm
