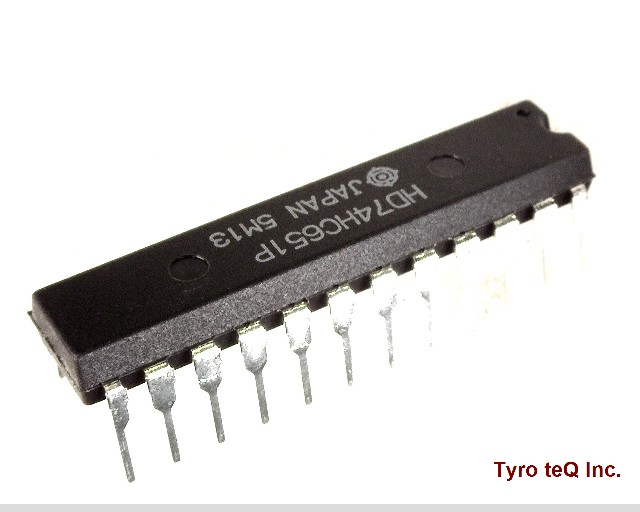

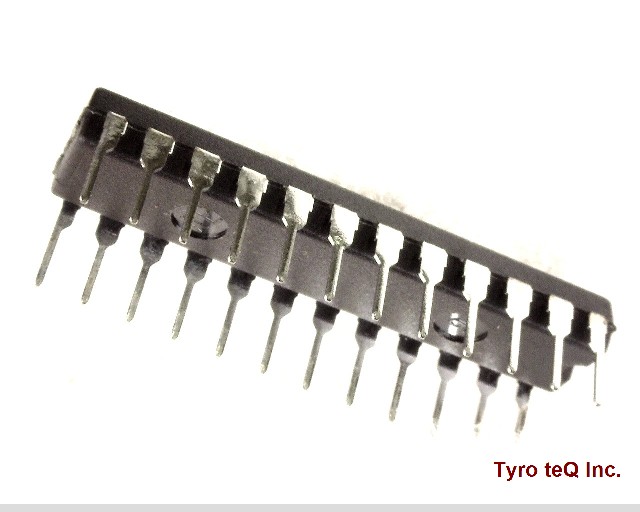

HD74HC651P
1
-
- 個
２営業日以内に回答いたします
HD74HC651P の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HD74HC651P |
|---|---|
| メーカー | HITACHI |
| 種別 | 高速CMOS標準ロジックIC |
| Control Type | INDEPENDENT CONTROL |
| Count Direction | BIDIRECTIONAL |
| Family | HC/UH |
| JESD-30 Code | R-PDIP-T24 |
| Length | 31.6 mm |
| Logic IC Type | REGISTERED BUS TRANSCEIVER |
| Max I(ol) | 0.006 Amp |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | INVERTED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 2/6 V |
| Prop. Delay@Nom-Sup | 34 ns |
| Propagation Delay (tpd) | 215 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.7 mm |
| Sub Category | Bus Driver/Transceivers |
| Supply Voltage-Max (Vsup) | 6 V |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Nom (Vsup) | 4.5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Translation | N/A |
| Trigger Type | POSITIVE EDGE |
| Width | 15.24 mm |
| 会社名称 | 株式会社 日立製作所 |
|---|---|
| 設立 | 1920年2月1日 |
| 資本金 | 458,790百万円 |
| 所在地 | 100-8280 東京都千代田区丸の内一丁目6番6号 |
| URL | http://www.hitachi.com/ |
