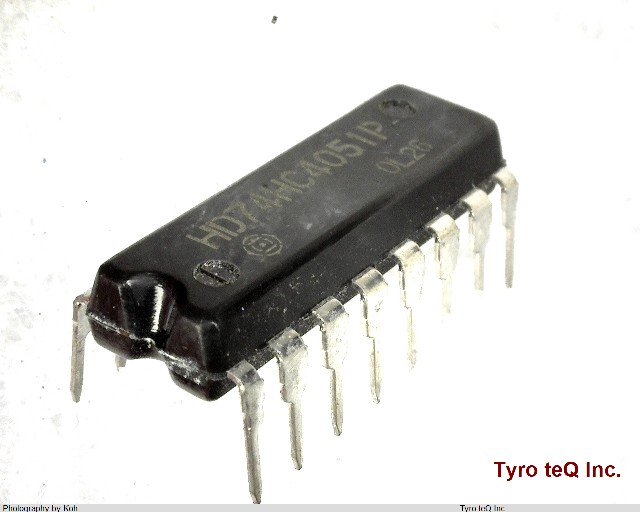

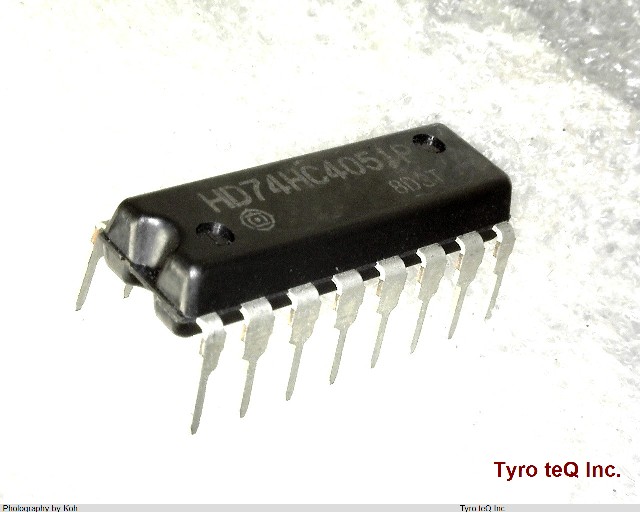

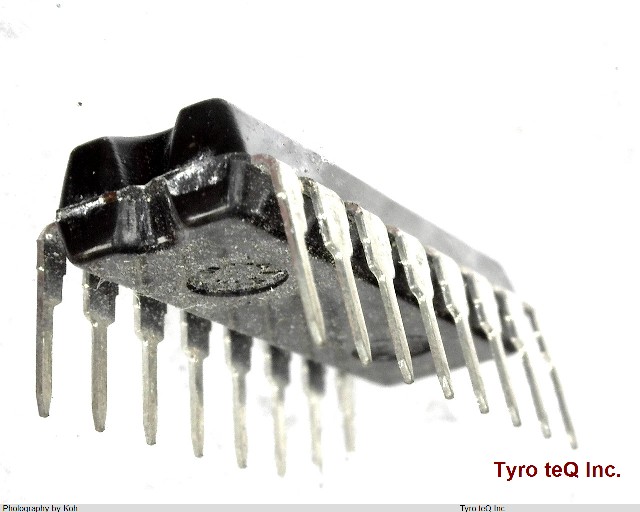

HD74HC4051P

Name: HD74HC4051P
Brand: HITACHI
SKU: 180150550-0000-0000-0000

HD74HC4051P - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ：DIP

HD74HC4051P の詳細情報

型番	HD74HC4051P
メーカー	HITACHI
種別	高速CMOS標準ロジックIC
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.2 mm
Moisture Sensitivity Level	1
Number of Channels	8
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	13 ohm
On-state Resistance-Max (Ron)	180 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	2/6 V
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Signal Current-Max	0.05 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.04 mA
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	NO
Switch-off Time-Max	30 ns
Switch-on Time-Max	30 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
