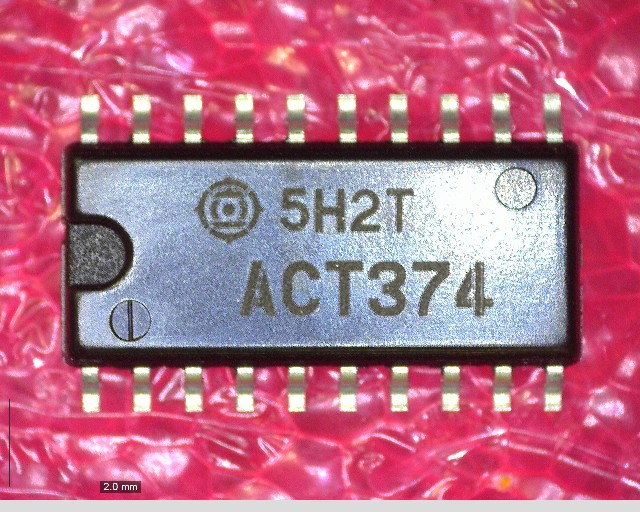

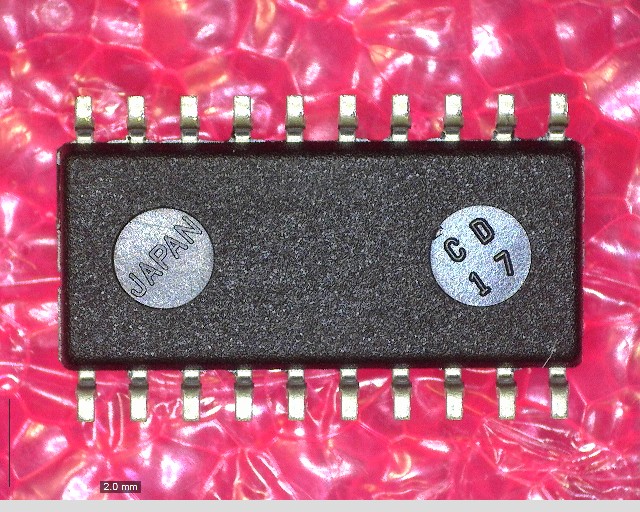

HD74ACT374FP データシート

Name: HD74ACT374FP
Brand: HITACHI
SKU: 180013714-0000-0000-0000

HD74ACT374FP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ：SOP(JEITA)

HD74ACT374FP の詳細情報

型番	HD74ACT374FP
メーカー	HITACHI
種別	Advanced CMOSロジックIC
データシート
Family	AC
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.6 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max Frequency@Nom-Sup	90000000 Hz
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Propagation Delay (tpd)	11.5 ns
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Trigger Type	POSITIVE EDGE
Width	5.5 mm
