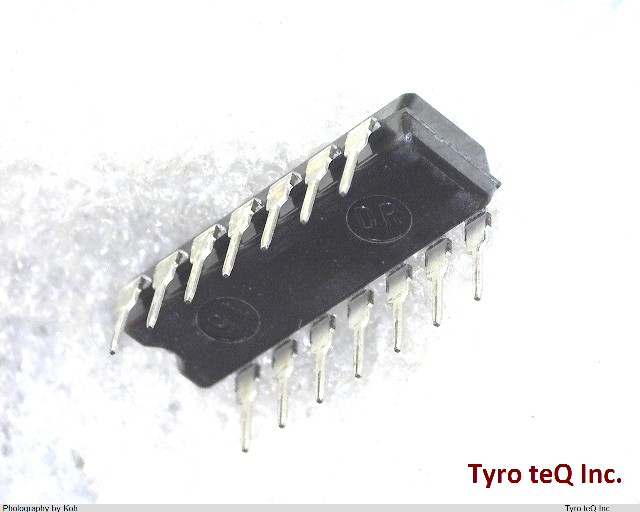

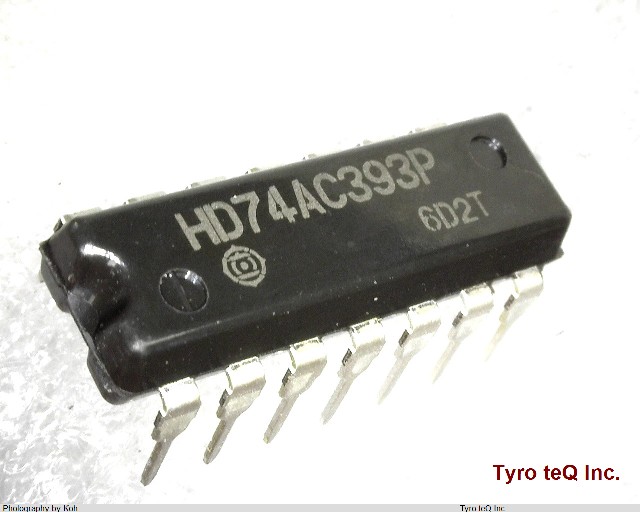

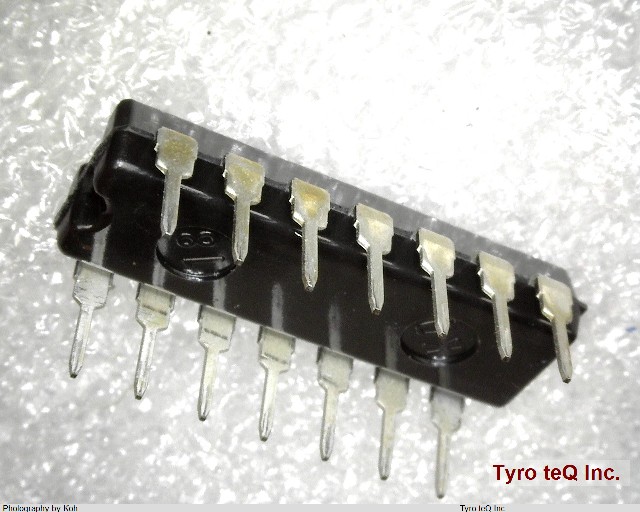

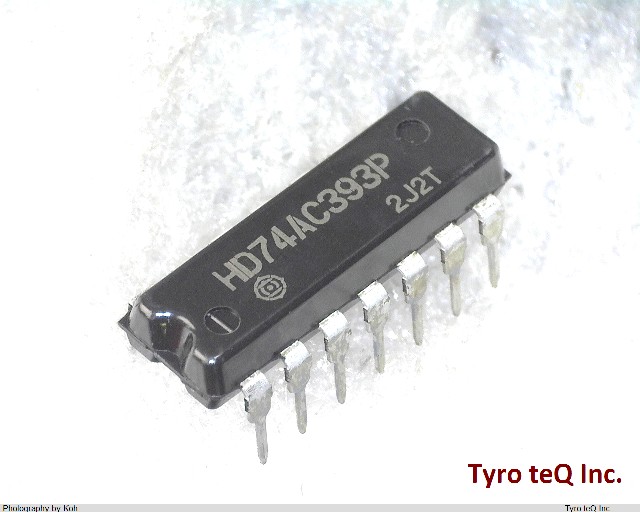

HD74AC393P
1
-
- 個
２営業日以内に回答いたします
Advanced CMOSロジックIC|パッケージ：DIP
HD74AC393P の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HD74AC393P |
|---|---|
| メーカー | HITACHI |
| 種別 | Advanced CMOSロジックIC |
| Additional Feature | ALSO OPERATES WITH 5V SUPPLY |
| Count Direction | UP |
| Family | AC |
| JESD-30 Code | R-PDIP-T14 |
| Length | 19.2 mm |
| Load Capacitance (CL) | 50 pF |
| Load/Preset Input | NO |
| Logic IC Type | BINARY COUNTER |
| Max Frequency@Nom-Sup | 100000000 Hz |
| Max I(ol) | 0.012 Amp |
| Mode of Operation | ASYNCHRONOUS |
| Number of Bits | 4 |
| Number of Functions | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 3.3/5 V |
| Propagation Delay (tpd) | 22 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.06 mm |
| Sub Category | Counters |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 3 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | NEGATIVE EDGE |
| Width | 7.62 mm |
| fmax-Min | 125 MHz |
| 会社名称 | 株式会社 日立製作所 |
|---|---|
| 設立 | 1920年2月1日 |
| 資本金 | 458,790百万円 |
| 所在地 | 100-8280 東京都千代田区丸の内一丁目6番6号 |
| URL | http://www.hitachi.com/ |
