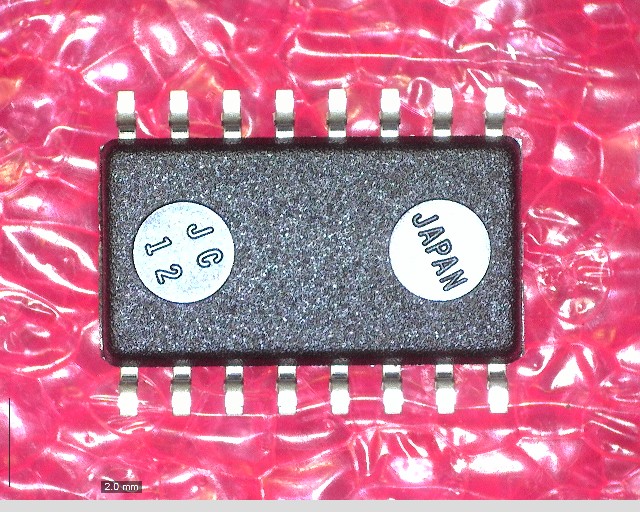

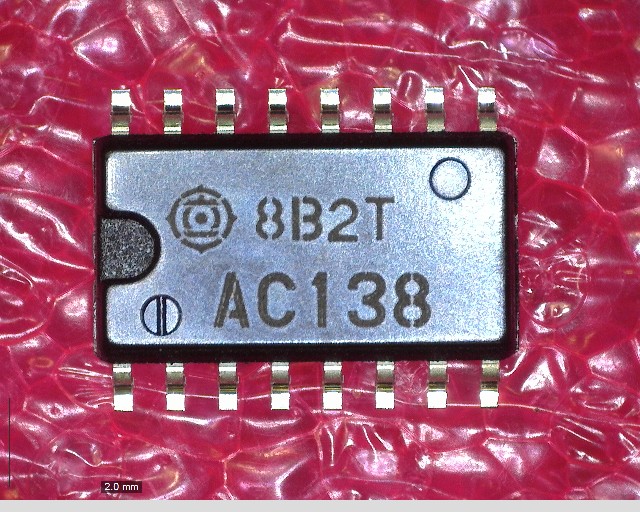

HD74AC138FP データシート

Name: HD74AC138FP
Brand: HITACHI
SKU: 180000205-0000-0000-0000

HD74AC138FP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ：SOP(JEITA)

HD74AC138FP の詳細情報

型番	HD74AC138FP
メーカー	HITACHI
種別	Advanced CMOSロジックIC
データシート
Additional Feature	ALSO OPERATES WITH 5V SUPPLY
Family	AC
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.06 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	15 ns
Propagation Delay (tpd)	15 ns
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	5.5 mm
