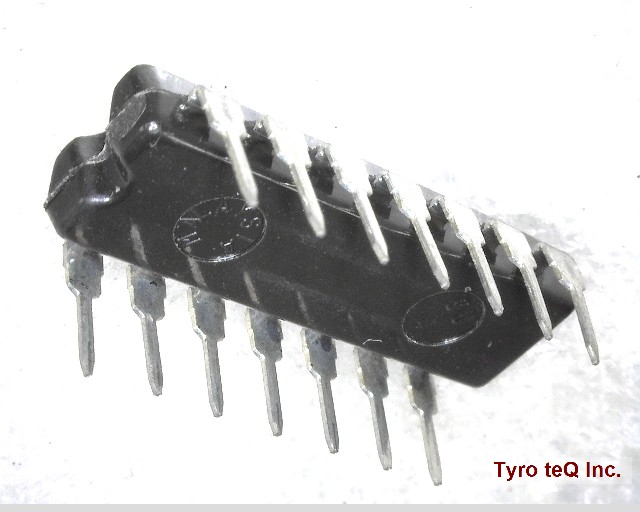

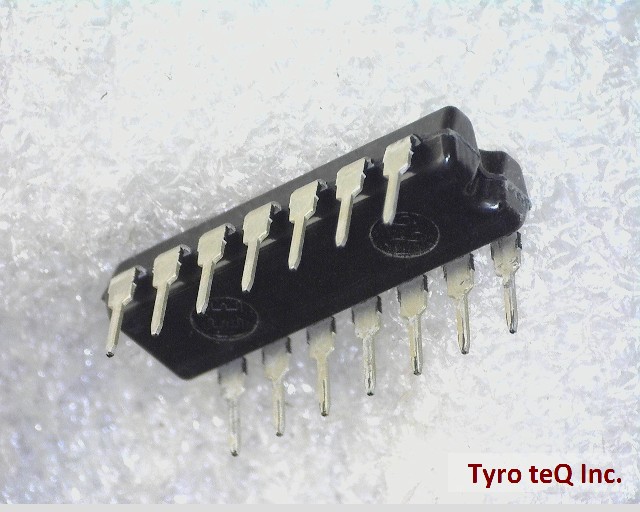

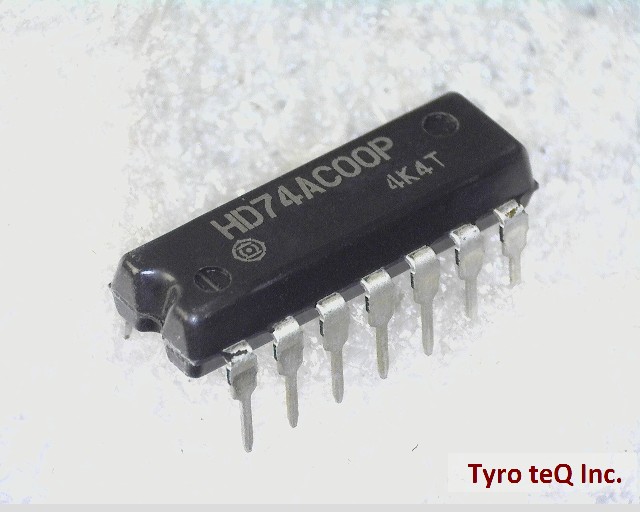

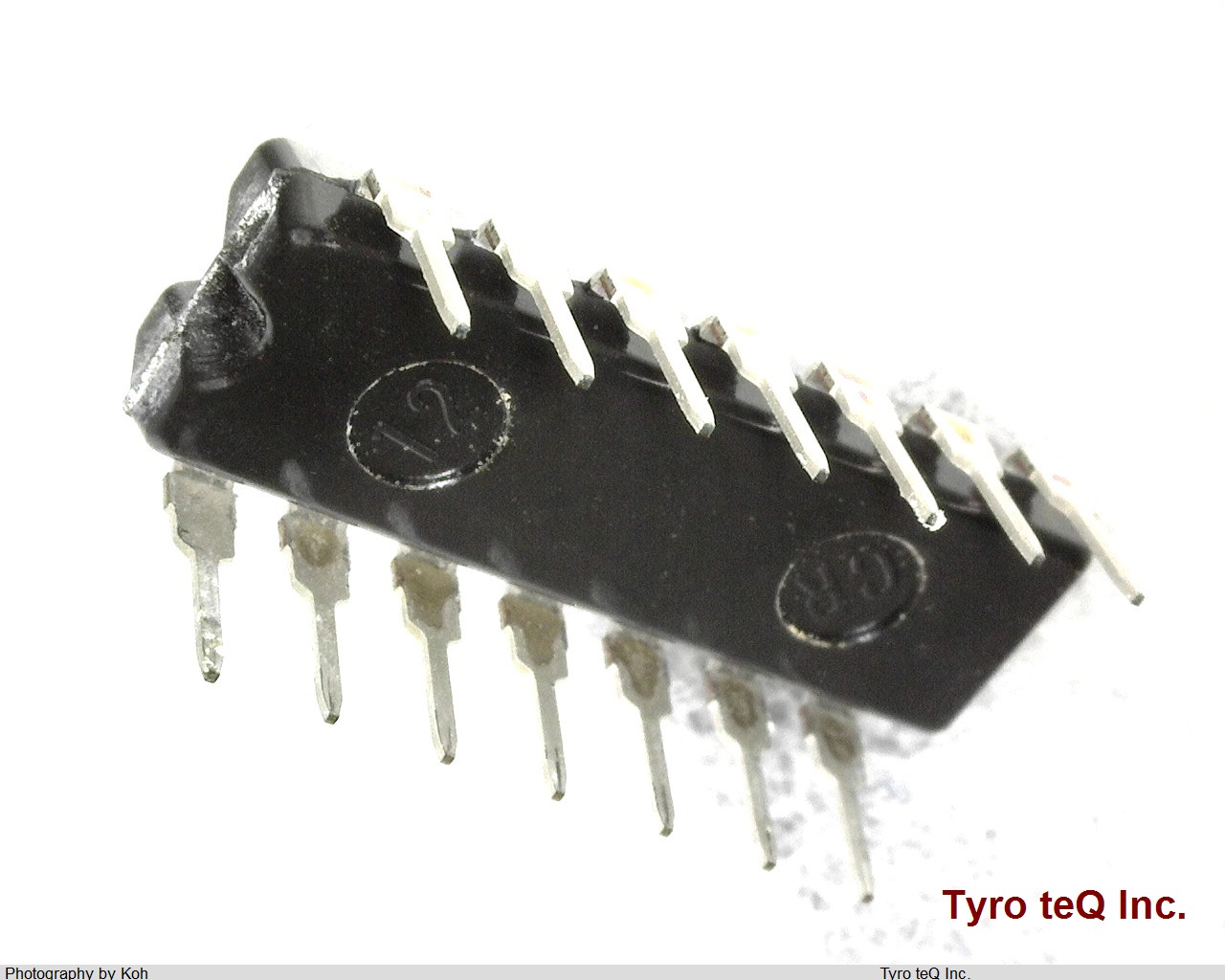

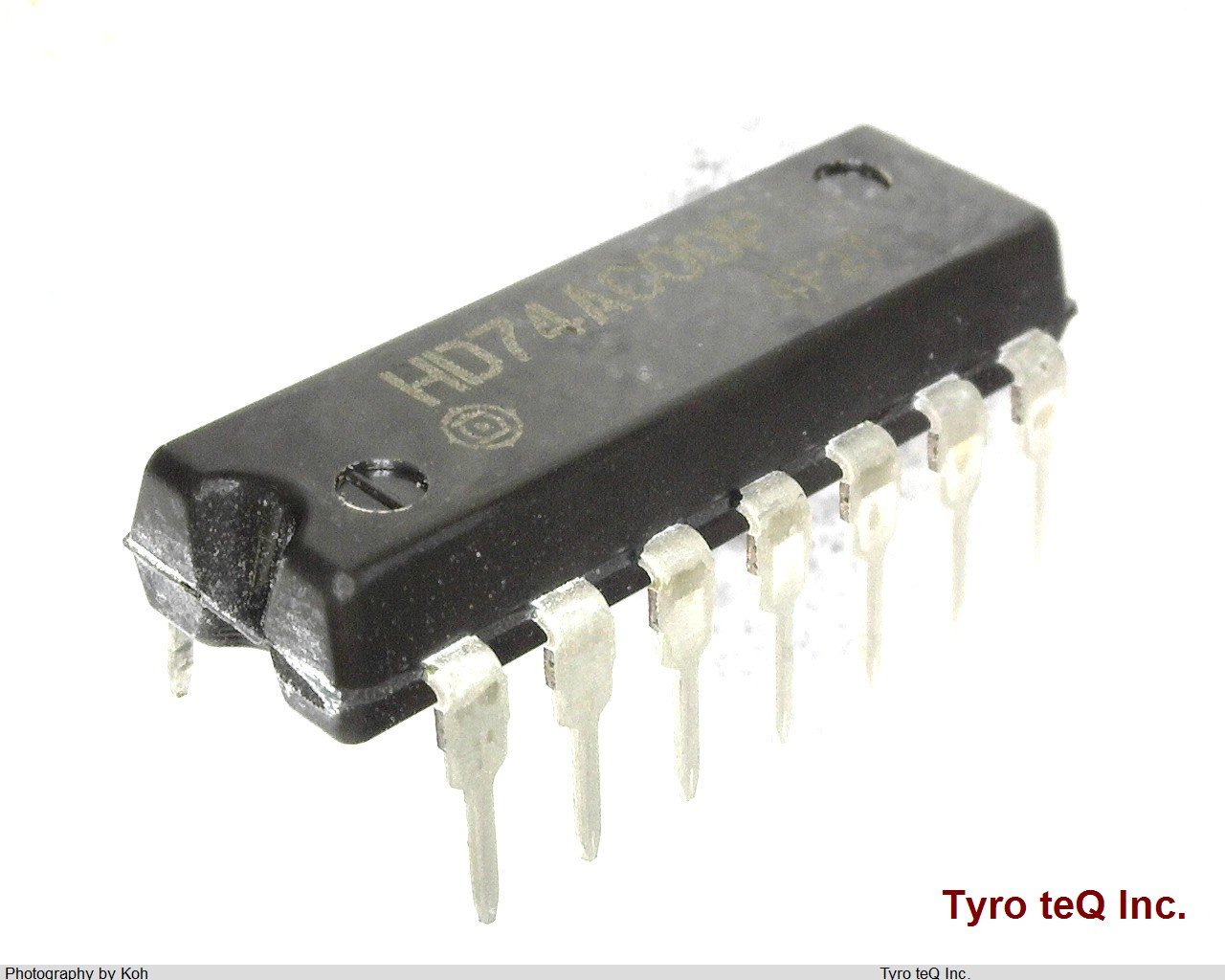

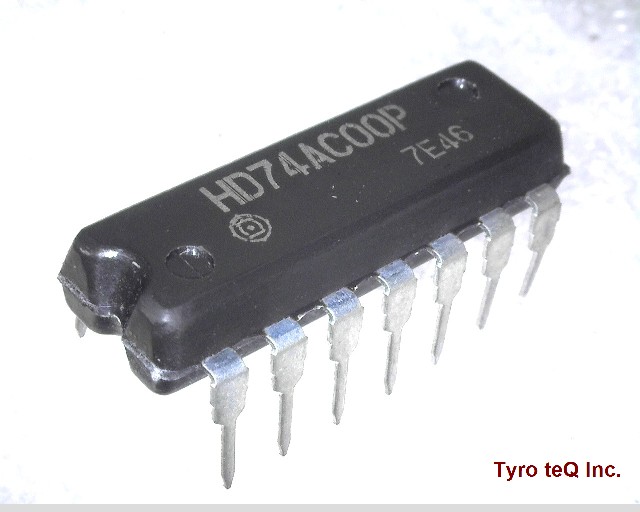

HD74AC00P データシート

Name: HD74AC00P
Brand: HITACHI
SKU: 180000202-0000-0000-0000

HD74AC00P - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ：DIP

HD74AC00P の詳細情報

型番	HD74AC00P
メーカー	HITACHI
種別	Advanced CMOSロジックIC
データシート
Family	AC
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.2 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NAND GATE
Max I(ol)	0.012 Amp
Moisture Sensitivity Level	1
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	10 ns
Propagation Delay (tpd)	10 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	5.06 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
