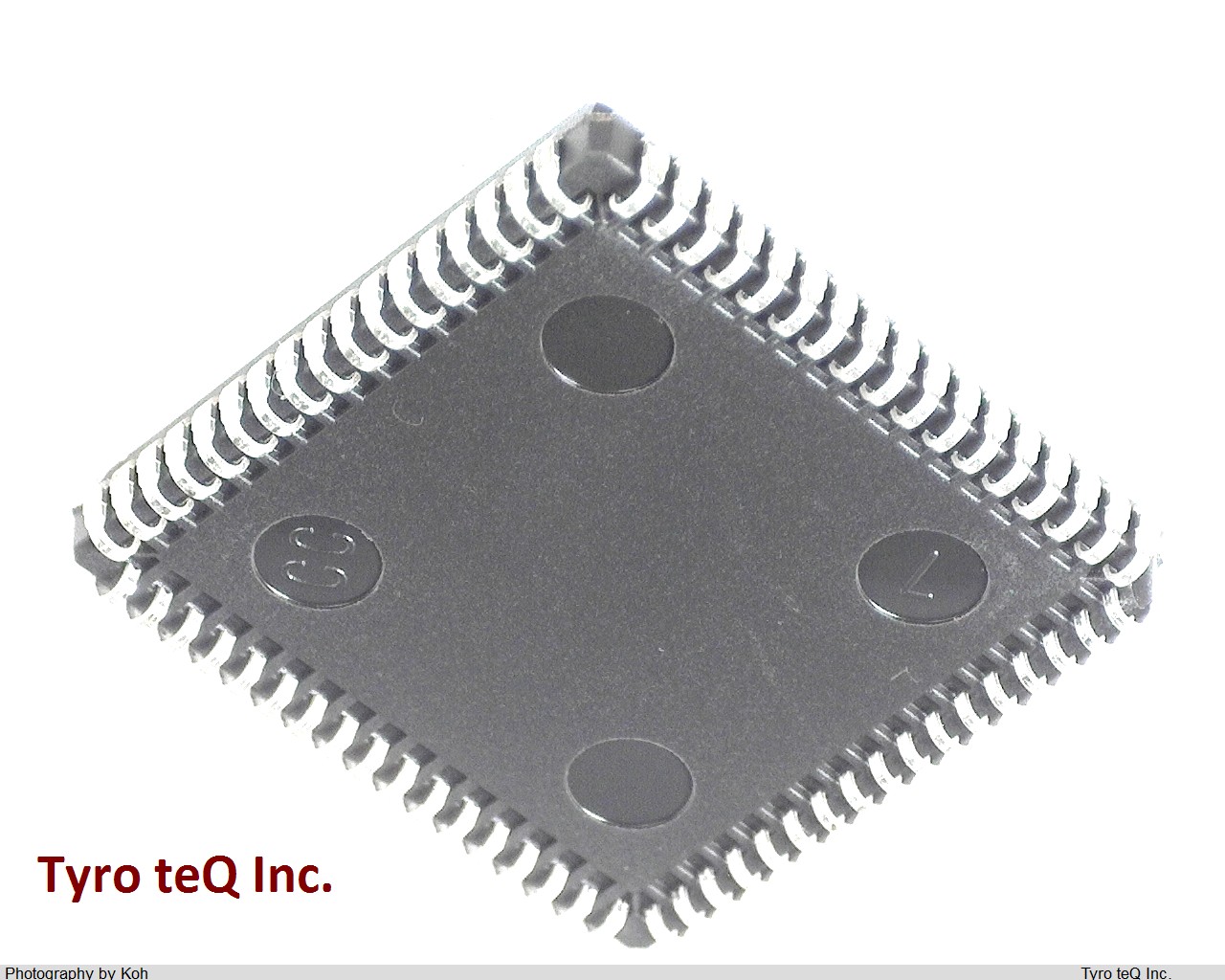

HD68HC000CP10

Name: HD68HC000CP10
Brand: HITACHI
SKU: 180013433-0000-0000-0000

HD68HC000CP10 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD68HC000CP10 の詳細情報

型番	HD68HC000CP10
メーカー	HITACHI
Address Bus Width	24
Bit Size	16
Boundary Scan	NO
Clock Frequency-Max	10 MHz
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-J68
JESD-609 Code	e0
Length	24.2 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	7
Number of Serial I/Os	0
Number of Terminals	68
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC68,1.0SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	4.6 mm
Speed	10 rpm
Sub Category	Microprocessors
Supply Current-Max	30 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Width	24.2 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
