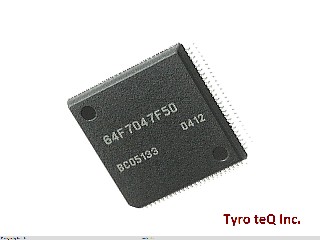

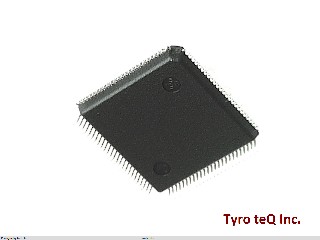

HD64F7047F50 データシート

Name: HD64F7047F50
Brand: HITACHI
SKU: 180013274-0000-0000-0000

HD64F7047F50 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD64F7047F50 の詳細情報

型番	HD64F7047F50
メーカー	HITACHI
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Address Bus Width	18
Bit Size	32
CPU Family	SH7000
Clock Frequency-Max	10 MHz
Connectivity	CAN, CSI(3), UART(3)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	8
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e0
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	69
Number of Terminals	100
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	DTC, POR, PWM, TIMER(7), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	12288
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	50 rpm
Sub Category	Microcontrollers
Supply Current-Max	235 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
