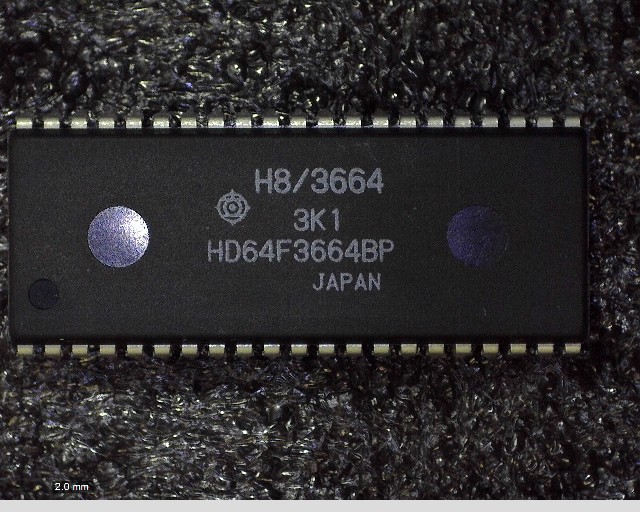

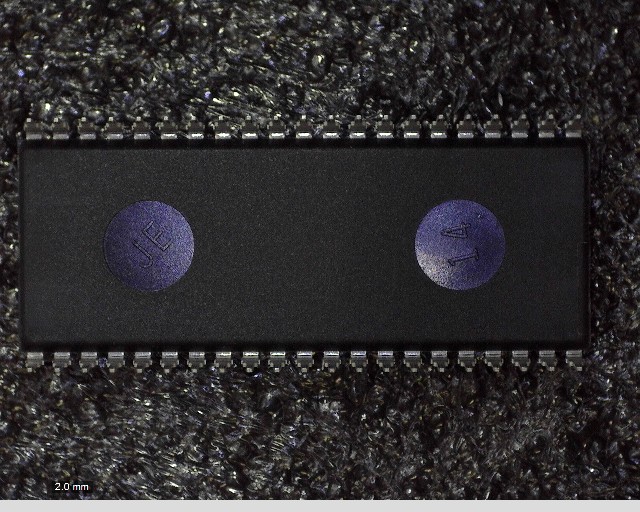

HD64F3664BP

Name: HD64F3664BP
Brand: HITACHI
SKU: 180153529-0000-0000-0000

HD64F3664BP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD64F3664BP の詳細情報

型番	HD64F3664BP
メーカー	HITACHI
ADC Channels	YES
Additional Feature	OPERATES AT 3V MINIMUM SUPPLY @ 1 MHZ
Address Bus Width	0
Bit Size	16
CPU Family	H8/300H
Clock Frequency-Max	16 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	R-PDIP-T42
JESD-609 Code	e0
Length	37.3 mm
Moisture Sensitivity Level	1
Number of I/O Lines	31
Number of Terminals	42
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP42,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
RAM (bytes)	2048
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	5.1 mm
Speed	16 rpm
Sub Category	Microcontrollers
Supply Current-Max	22.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
