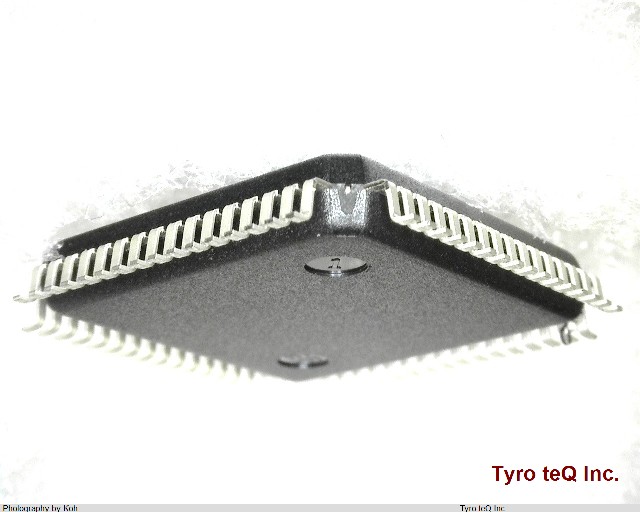

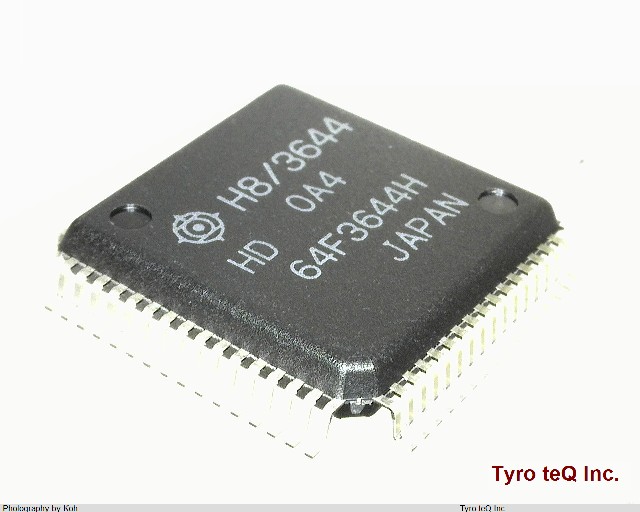

HD64F3644H

Name: HD64F3644H
Brand: HITACHI
SKU: 180152158-0000-0000-0000

HD64F3644H - HITACHI の商品詳細ページです。

No Image

２営業日以内に回答いたします

HD64F3644H の詳細情報

型番	HD64F3644H
メーカー	HITACHI
ADC Channels	YES
Additional Feature	OPERATES AT 3V MINIMUM SUPPLY @ 5 MHZ
Address Bus Width	0
Bit Size	8
CPU Family	H8/300L
Clock Frequency-Max	16 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	S-PQFP-G64
JESD-609 Code	e0
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	53
Number of Terminals	64
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP64,.66SQ,32
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	1024
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	3.05 mm
Speed	5 rpm
Sub Category	Microcontrollers
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
