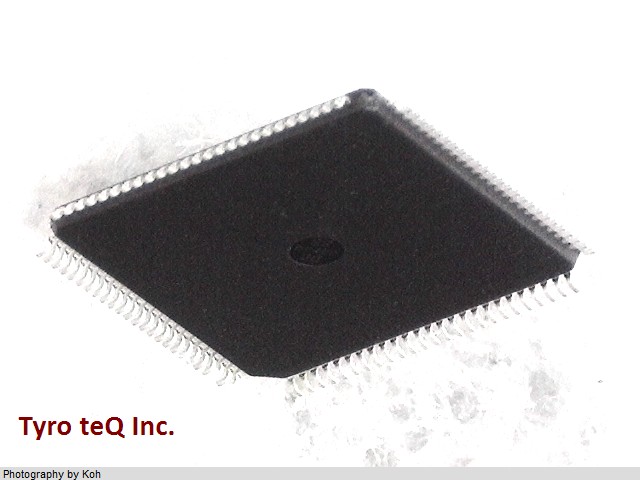

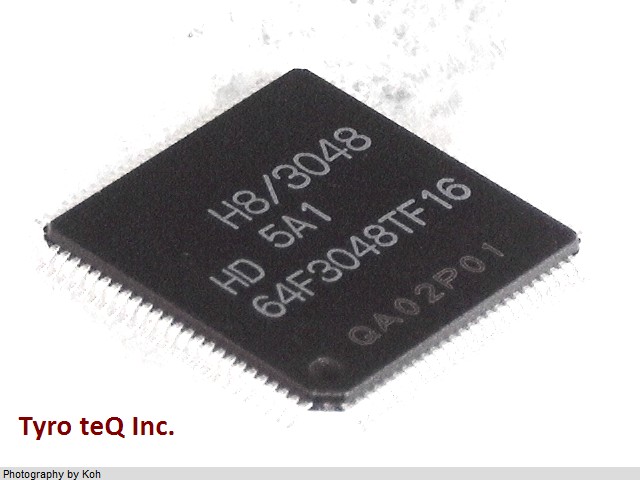

HD64F3048TF16 データシート

Name: HD64F3048TF16
Brand: HITACHI
SKU: 180000193-0000-0000-0000

HD64F3048TF16 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD64F3048TF16 の詳細情報

型番	HD64F3048TF16
メーカー	HITACHI
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO REQUIRED 2.7 TO 5.5V SUPPLY OPERATES @ 8MHZ
Address Bus Width	24
Bit Size	16
CPU Family	H8/300H
Clock Frequency-Max	16 MHz
Connectivity	ACIA, SCI(2), SMART CARD, UART
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e0
Length	14 mm
Number of I/O Lines	78
Number of Terminals	100
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(4), POR, PWM(5), TIMER(6), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	4096
ROM (words)	131072
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	16 rpm
Sub Category	Microcontrollers
Supply Current-Max	75 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
