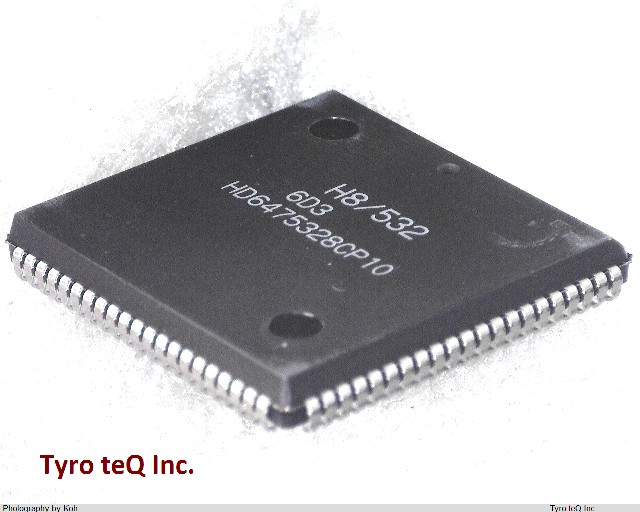

HD6475328CP10 データシート

Name: HD6475328CP10
Brand: HITACHI
SKU: 180000543-0000-0000-0000

HD6475328CP10 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD6475328CP10 の詳細情報

型番	HD6475328CP10
メーカー	HITACHI
データシート
ADC Channels	YES
Address Bus Width	20
Bit Size	16
Boundary Scan	NO
CPU Family	H8/500
Clock Frequency-Max	20 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-J84
JESD-609 Code	e0
Length	29.2862 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	3
Number of I/O Lines	65
Number of Serial I/Os	1
Number of Terminals	84
Number of Timers	4
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC84,1.2SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	1024
RAM (words)	512
ROM (words)	32768
ROM Programmability	OTPROM
Seated Height-Max	4.6 mm
Speed	10 rpm
Sub Category	Microcontrollers
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
