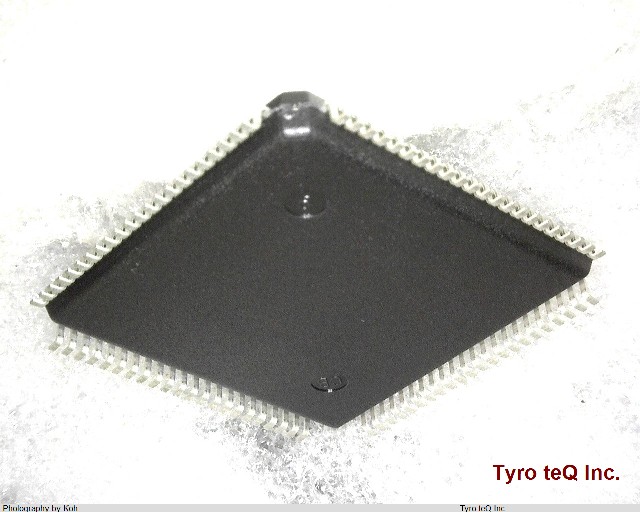

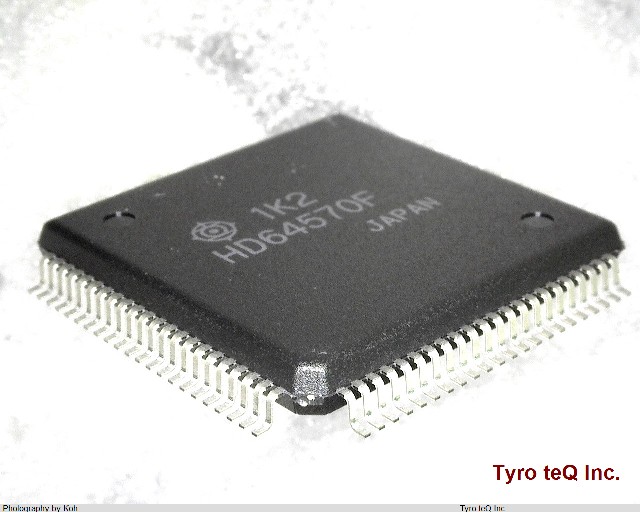

HD64570F Hitachi

HD64570F - HITACHI の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HD64570F の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HD64570F
メーカーHITACHI
Additional Feature MODEM CONTROL CAPABILITY; BUS ARBITRATOR; ADVANCED DIGITAL PLL FUNCTION
Address Bus Width 24
Boundary Scan NO
Bus Compatibility 68000; 64180; 8086
Clock Frequency-Max 10 MHz
Communication Protocol ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; X.21; X.25; LAPB; LAPD; DDCMP
Data Encoding/Decoding Method NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max 0.7125 MBps
External Data Bus Width 16
JESD-30 Code S-PQFP-G88
JESD-609 Code e0
Length 20 mm
Low Power Mode NO
Moisture Sensitivity Level 3
Number of DMA Channels 4
Number of I/O Lines 0
Number of Serial I/Os 2
Number of Terminals 88
On Chip Data RAM Width 0
Operating Temperature-Max 70 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP88,.9SQ,32
Package Shape SQUARE
Package Style FLATPACK Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 5 V
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 3.05 mm
Sub Category Serial IO/Communication Controllers
Supply Current-Max 120 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Width 20 mm
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
