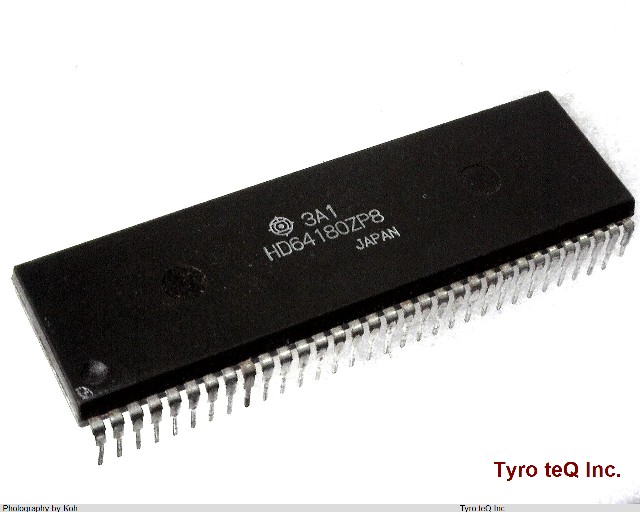

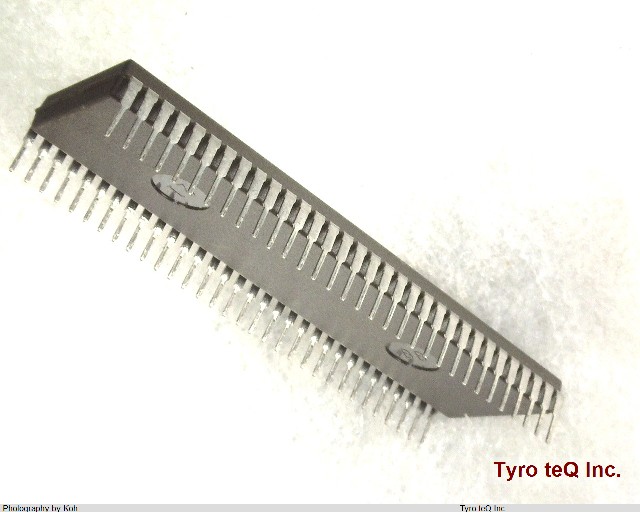

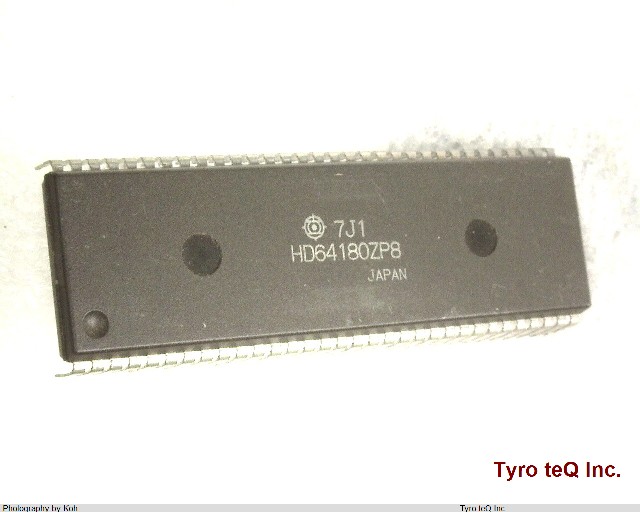

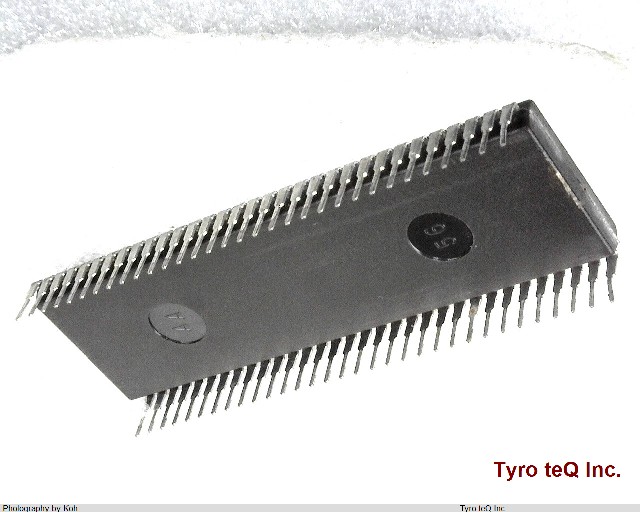

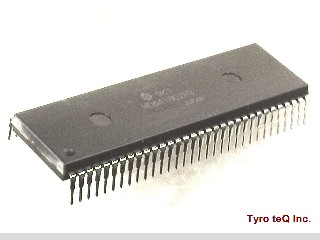

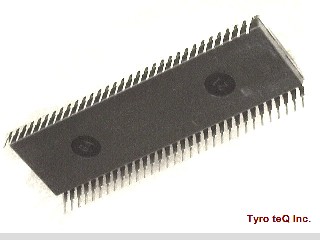

HD64180ZP-8 データシート

Name: HD64180ZP-8
Brand: HITACHI
SKU: 180012073-0000-0000-0000

HD64180ZP-8 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD64180ZP-8 の詳細情報

型番	HD64180ZP-8
メーカー	HITACHI
データシート
Additional Feature	DRAM REFRESH CONTROL; PROGRAMMABLE RELOAD TIMER
Address Bus Width	19
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	16 MHz
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T64
JESD-609 Code	e0
Length	57.6 mm
Low Power Mode	YES
Number of DMA Channels	2
Number of External Interrupts	4
Number of Serial I/Os	3
Number of Terminals	64
On Chip Data RAM Width	0
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP64,.75
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	5.08 mm
Speed	8 rpm
Sub Category	Microprocessors
Supply Current-Max	40 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
Terminal Position	DUAL
Width	19.05 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
