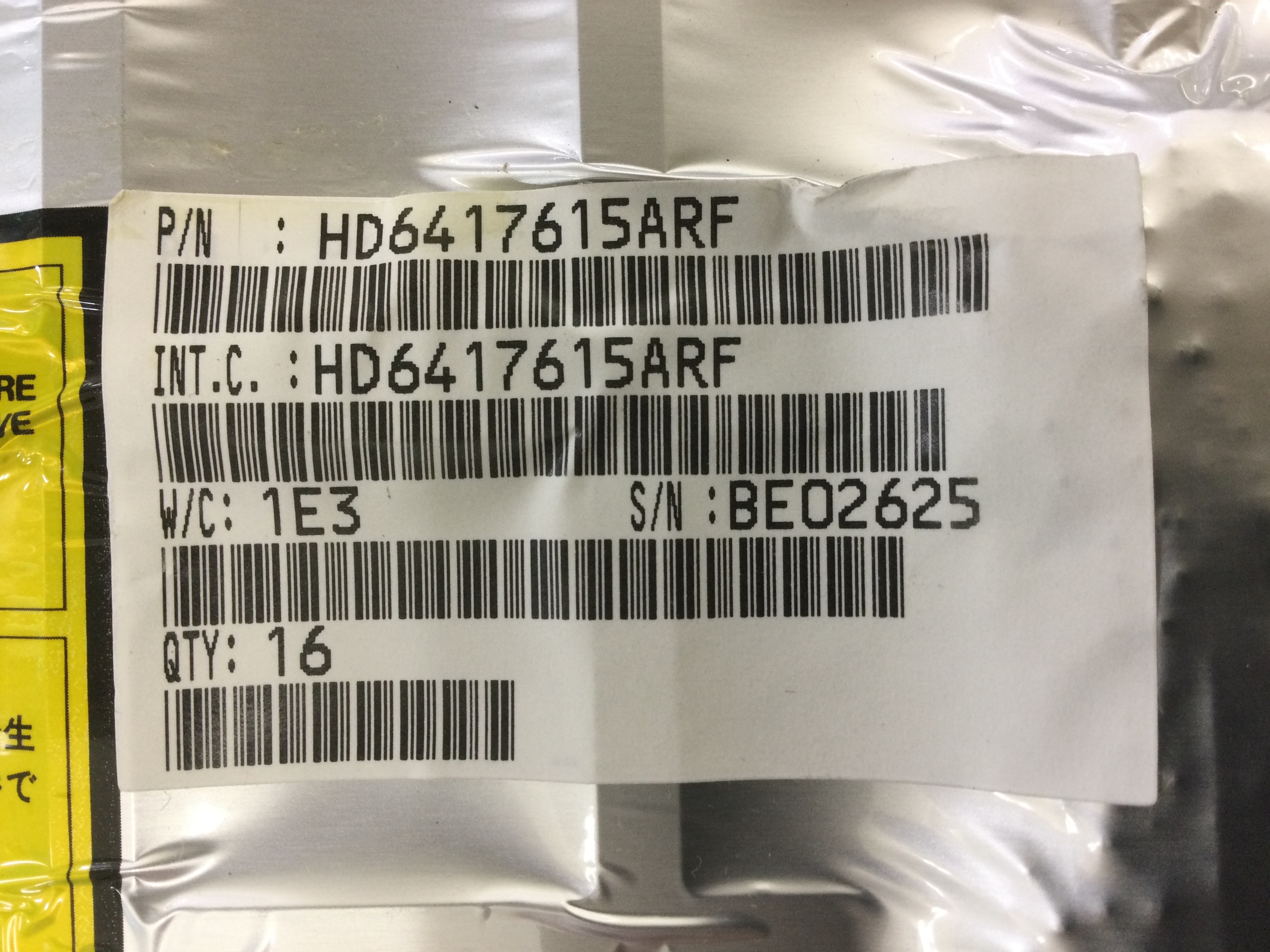

HD6417615ARF データシート

Name: HD6417615ARF
Brand: HITACHI
SKU: 180007248-0000-0000-0000

HD6417615ARF - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD6417615ARF の詳細情報

型番	HD6417615ARF
メーカー	HITACHI
データシート
ADC Channels	NO
Address Bus Width	25
Bit Size	32
Clock Frequency-Max	31.25 MHz
Connectivity	ETHERNET, IRDA, SCI(4), SIO(3), UART(2)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	32
JESD-30 Code	S-PQFP-G208
JESD-609 Code	e0
Length	28 mm
Moisture Sensitivity Level	3
Number of I/O Lines	29
Number of Terminals	208
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	DMA(4), POR, PWM(3), TIMER(4), WDT
Qualification Status	Not Qualified
RAM (bytes)	8192
ROM Programmability	MROM
Seated Height-Max	1.7 mm
Speed	62.5 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	28 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
