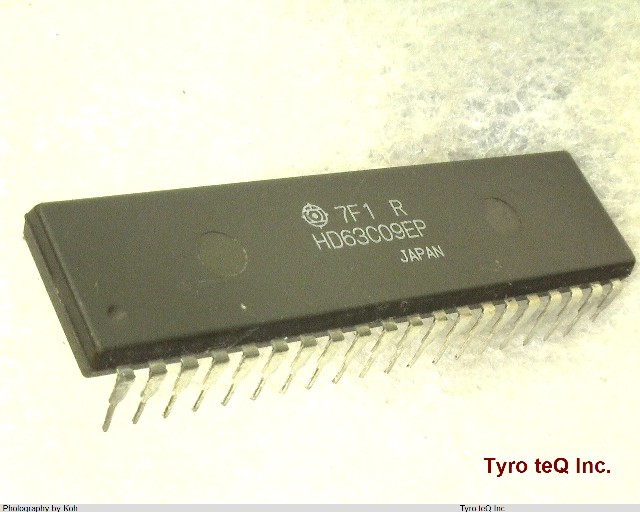

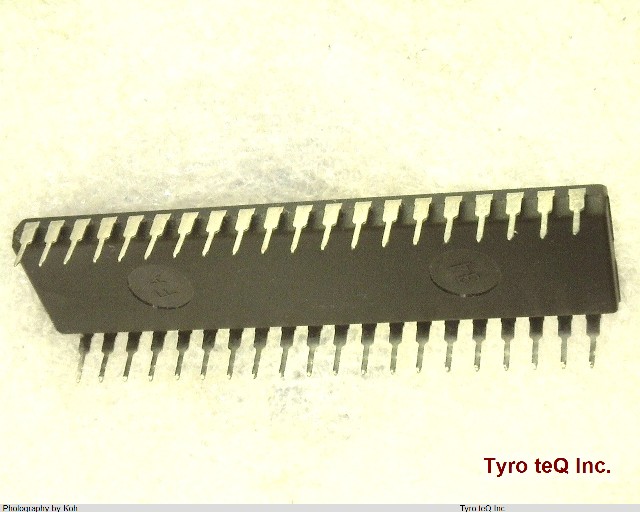

HD63C09EP

Name: HD63C09EP
Brand: HITACHI
SKU: 180011882-0000-0000-0000

HD63C09EP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD63C09EP の詳細情報

型番	HD63C09EP
メーカー	HITACHI
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	3 MHz
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	52.8 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	3
Number of Serial I/Os	0
Number of Terminals	40
On Chip Data RAM Width	0
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	5.08 mm
Speed	3 rpm
Sub Category	Microprocessors
Supply Current-Max	30 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
