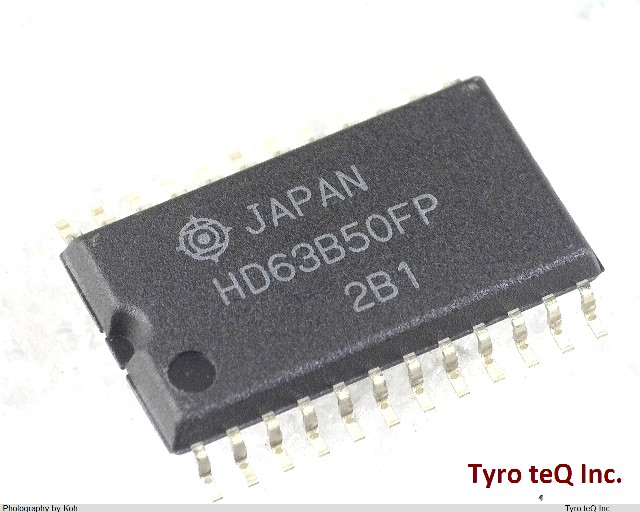

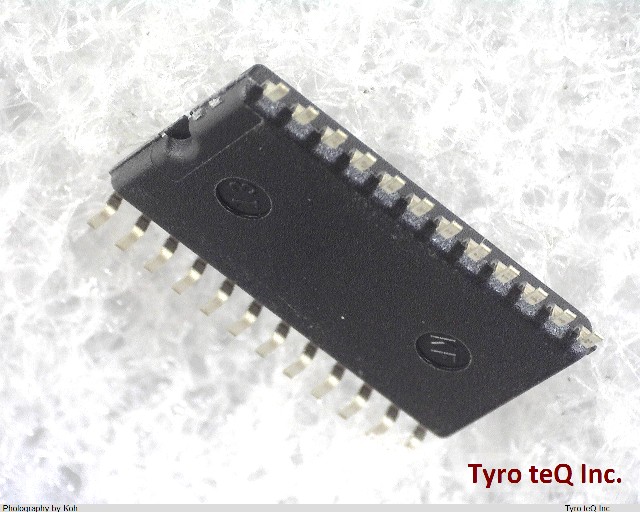

HD63B50FP

Name: HD63B50FP
Brand: HITACHI
SKU: 180148031-0000-0000-0000

HD63B50FP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD63B50FP の詳細情報

型番	HD63B50FP
メーカー	HITACHI
Additional Feature	MODEM CONTROL CAPABILITY
Address Bus Width	1
Boundary Scan	NO
Bus Compatibility	6800
Clock Frequency-Max	2 MHz
Communication Protocol	ASYNC, BIT
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.125 MBps
External Data Bus Width	8
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	15.8 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of I/O Lines	0
Number of Serial I/Os	1
Number of Terminals	24
On Chip Data RAM Width	0
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.45
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	2.5 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	300 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	8.4 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
