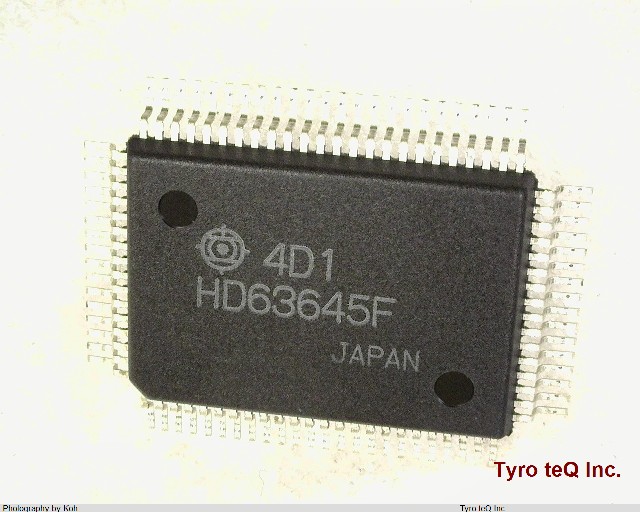

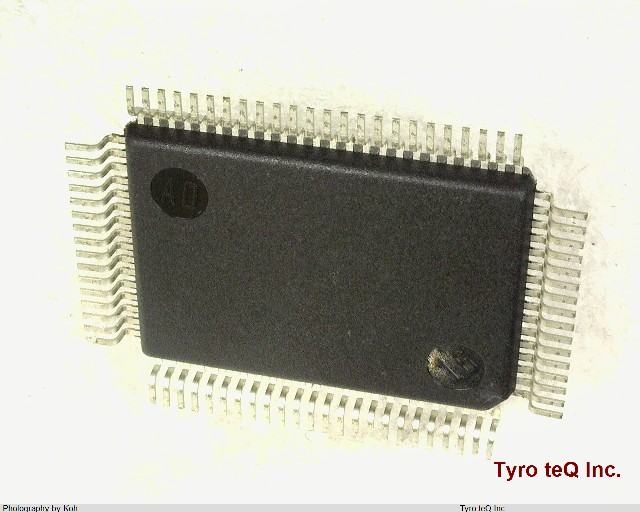

HD63645F

Name: HD63645F
Brand: HITACHI
SKU: 400063125-0000-0000-0000

HD63645F - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD63645F の詳細情報

型番	HD63645F
メーカー	HITACHI
Address Bus Width	16
Clock Frequency-Max	2 MHz
Display Configuration	1024 X 4096 DOT
External Data Bus Width	8
JESD-30 Code	R-PQFP-F80
JESD-609 Code	e0
Length	20 mm
Number of Terminals	80
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QFF
Package Equivalence Code	QFL80,.55X.8,32
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	3.1 mm
Sub Category	Display Controllers
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	FLAT
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	DISPLAY CONTROLLER, DOT MATRIX LCD DISPLAY
