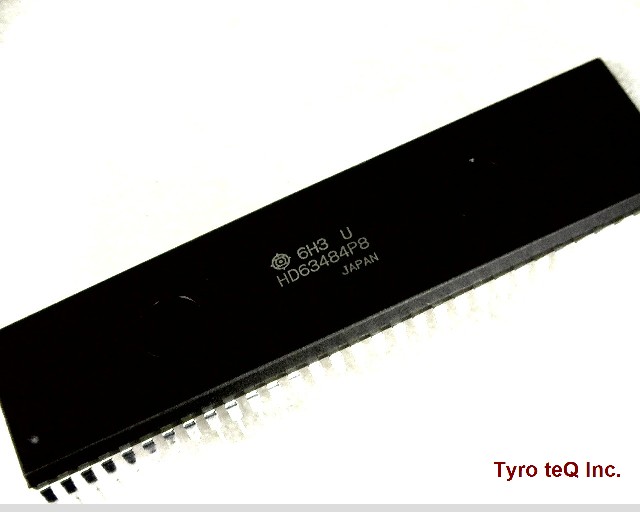

HD63484P8

Name: HD63484P8
Brand: HITACHI
SKU: 180001640-0000-0000-0000

HD63484P8 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD63484P8 の詳細情報

型番	HD63484P8
メーカー	HITACHI
Address Bus Width	16
Clock Frequency-Max	8 MHz
External Data Bus Width	16
JESD-30 Code	R-PDIP-T64
JESD-609 Code	e0
Length	82.042 mm
Number of Terminals	64
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP64,.9
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Display Controllers
Supply Current-Max	100 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	22.86 mm
uPs/uCs/Peripheral ICs Type	DISPLAY CONTROLLER, CRT CHARACTER OR GRAPHICS DISPLAY
