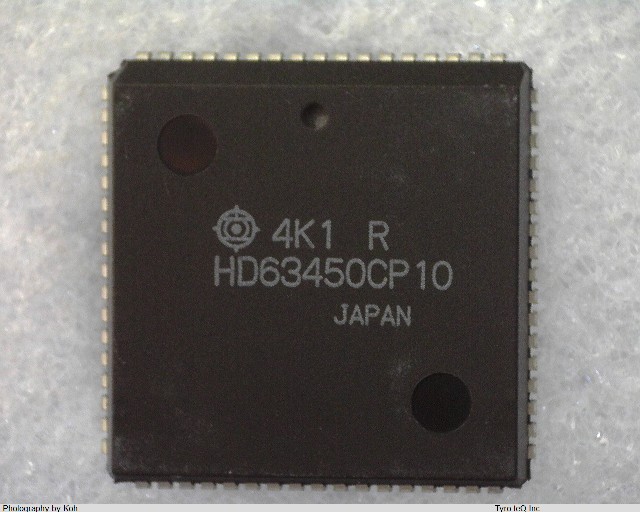

HD63450CP10

Name: HD63450CP10
Brand: HITACHI
SKU: 180011746-0000-0000-0000

HD63450CP10 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD63450CP10 の詳細情報

型番	HD63450CP10
メーカー	HITACHI
Additional Feature	CYCLE STEAL W/WO HOLD, BURST, AUTO REQUEST TRANSFER MODES; FIXED & ROTATIONAL PRIORITY INTRPT MODES
Address Bus Width	24
Bus Compatibility	68000
Clock Frequency-Max	10 MHz
External Data Bus Width	16
JESD-30 Code	S-PQCC-J68
JESD-609 Code	e0
Length	24.2062 mm
Number of DMA Channels	4
Number of Terminals	68
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC68,1.0SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.6 mm
Sub Category	DMA Controllers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Width	24.2062 mm
uPs/uCs/Peripheral ICs Type	DMA CONTROLLER
