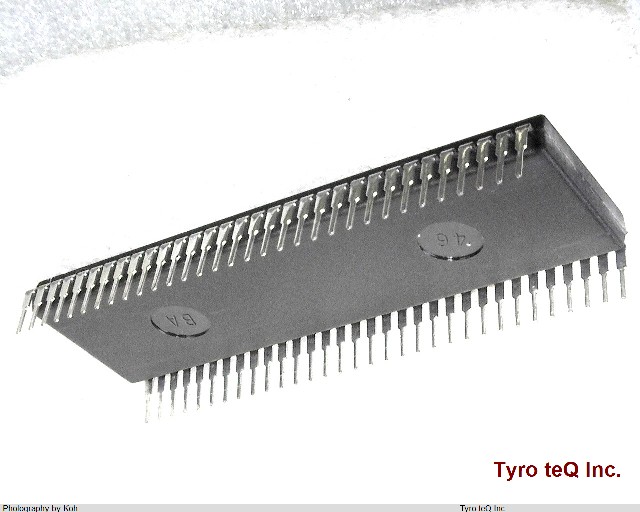

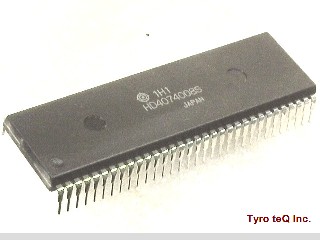

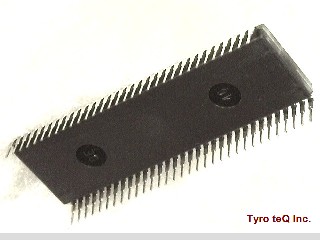

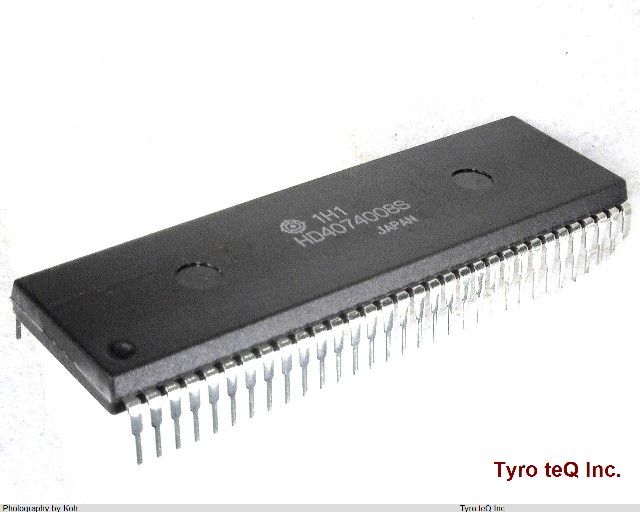

HD4074008S

Name: HD4074008S
Brand: HITACHI
SKU: 180011239-0000-0000-0000

HD4074008S - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD4074008S の詳細情報

型番	HD4074008S
メーカー	HITACHI
ADC Channels	NO
Address Bus Width	15
Bit Size	4
Boundary Scan	NO
CPU Family	HMCS400
Clock Frequency-Max	9 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T64
JESD-609 Code	e0
Length	57.6 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	2
Number of I/O Lines	58
Number of Serial I/Os	1
Number of Terminals	64
Number of Timers	2
On Chip Data RAM Width	4
On Chip Program ROM Width	10
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	SDIP
Package Equivalence Code	SDIP64,.75
Package Shape	RECTANGULAR
Package Style	IN-LINE, SHRINK PITCH Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	256
RAM (words)	512
ROM (words)	8192
ROM Programmability	OTPROM
Seated Height-Max	5.08 mm
Speed	9 rpm
Sub Category	Microcontrollers
Supply Current-Max	4.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.778 mm
