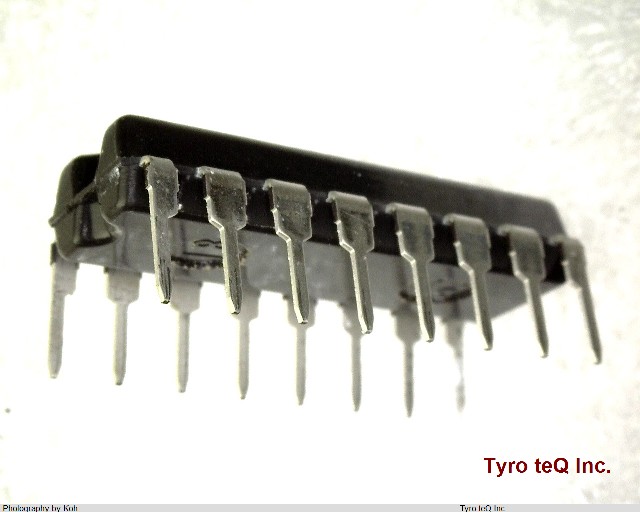

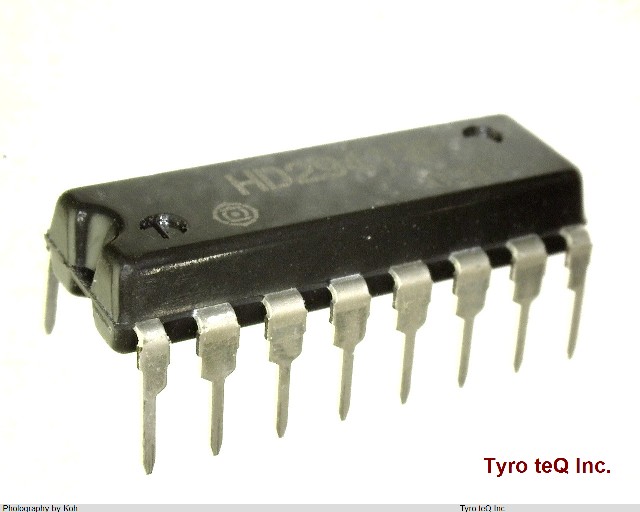

HD29413P
1
-
- 個
２営業日以内に回答いたします
HD29413P の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HD29413P |
|---|---|
| メーカー | HITACHI |
| Differential Output | NO |
| Input Characteristics | DIFFERENTIAL |
| Interface IC Type | LINE RECEIVER |
| Interface Standard | EIA-422-A; EIA-423-A |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Length | 19.2 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 4 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Low Current-Max | 0.008 Amp |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 25 ns |
| Receiver Number of Bits | 4 |
| Seated Height-Max | 5.06 mm |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max | 70 mA |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | 株式会社 日立製作所 |
|---|---|
| 設立 | 1920年2月1日 |
| 資本金 | 458,790百万円 |
| 所在地 | 100-8280 東京都千代田区丸の内一丁目6番6号 |
| URL | http://www.hitachi.com/ |
