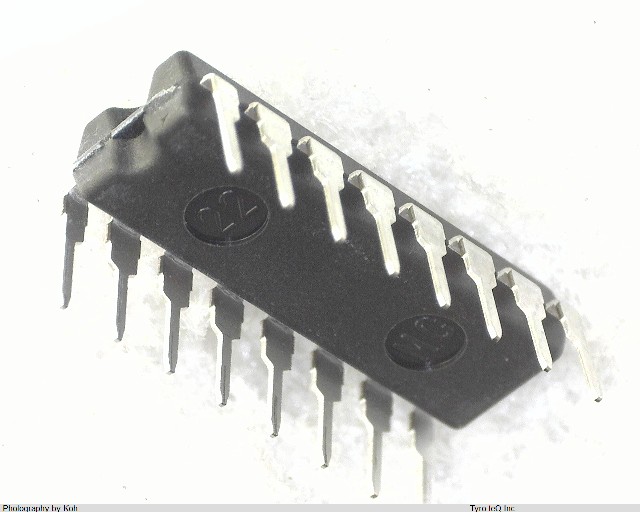

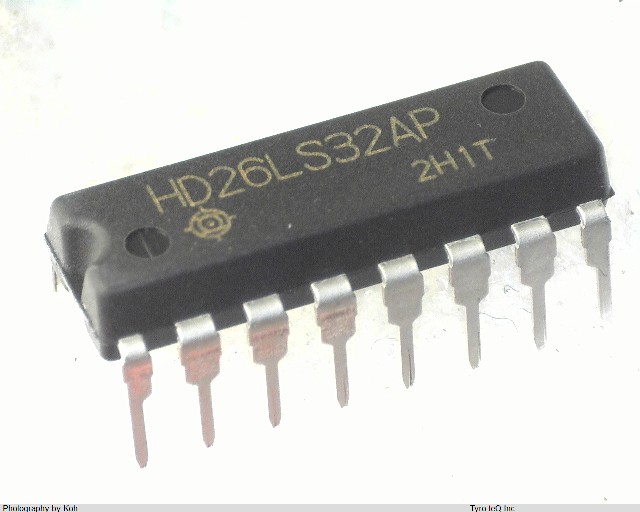

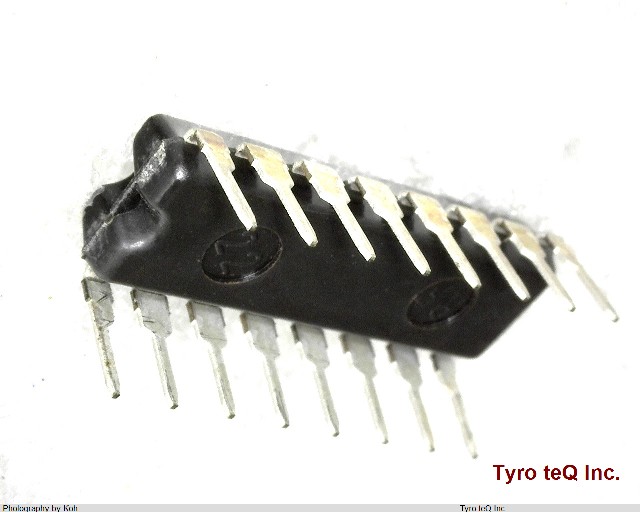

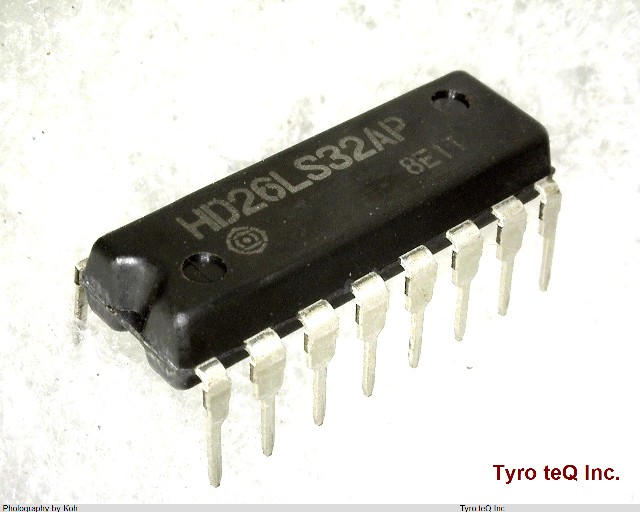

HD26LS32AP

Name: HD26LS32AP
Brand: HITACHI
SKU: 180156744-0000-0000-0000

HD26LS32AP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD26LS32AP の詳細情報

型番	HD26LS32AP
メーカー	HITACHI
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422-A; EIA-423
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.2 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Low Current-Max	0.008 Amp
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	35 ns
Receiver Number of Bits	4
Seated Height-Max	5.06 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	70 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
