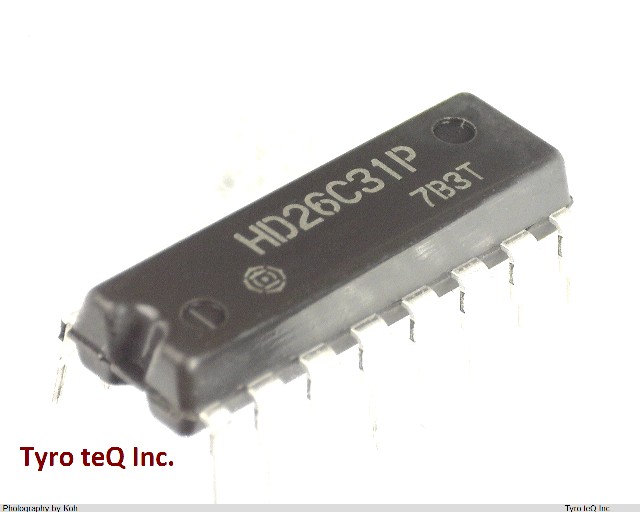

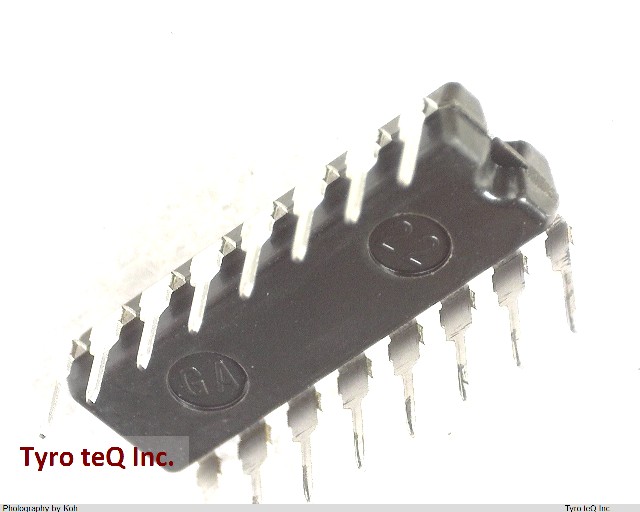

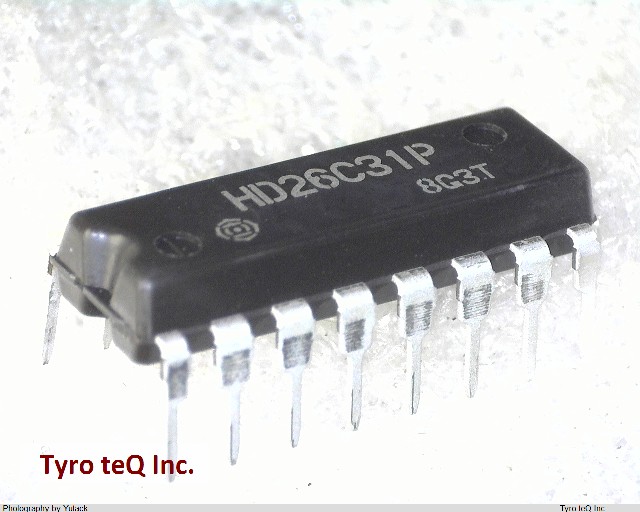

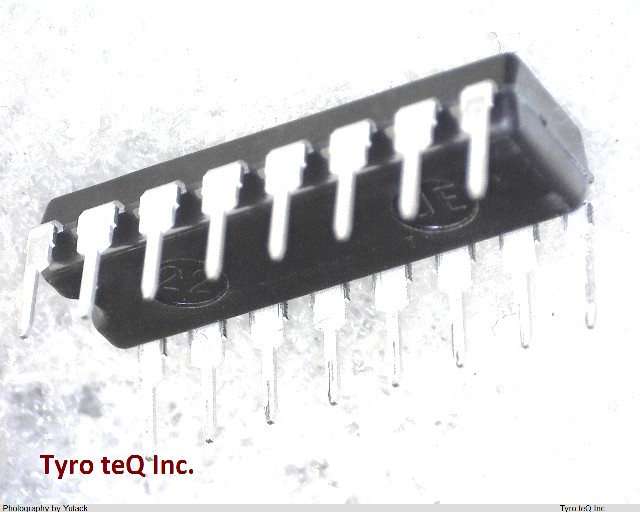

HD26C31P
1
-
- 個
２営業日以内に回答いたします
HD26C31P の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HD26C31P |
|---|---|
| メーカー | HITACHI |
| Differential Output | YES |
| Driver Number of Bits | 4 |
| Input Characteristics | STANDARD |
| Interface IC Type | LINE DRIVER |
| Interface Standard | EIA-422-A |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Length | 19.2 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 4 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Out Swing-Min | 2 V |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 0 ns |
| Seated Height-Max | 5.06 mm |
| Sub Category | Line Driver or Receivers |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Transmit Delay-Max | 11 ns |
| Width | 7.62 mm |
