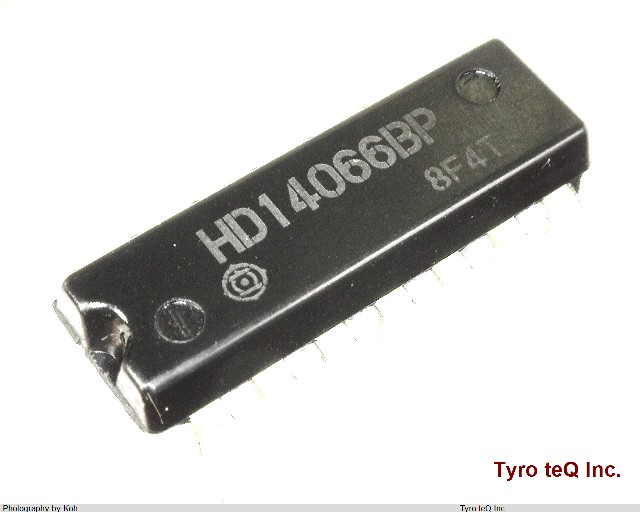

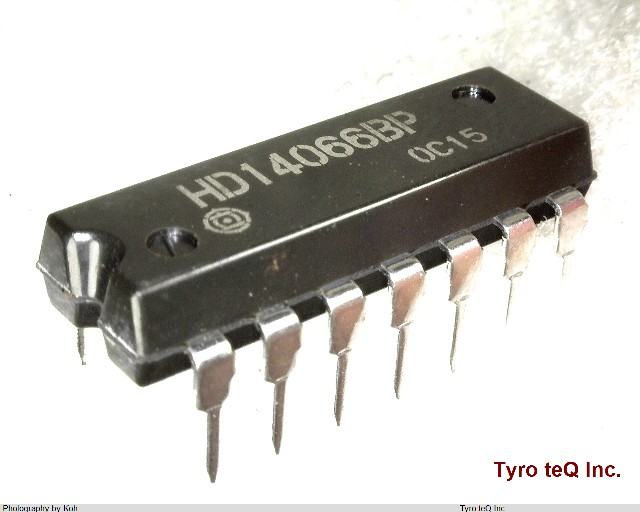

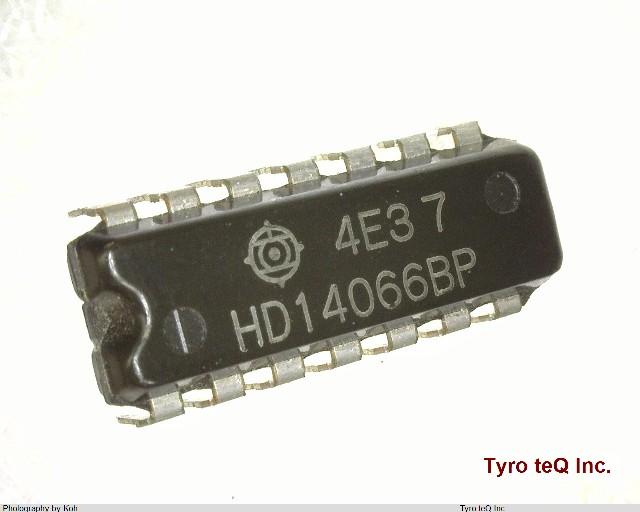

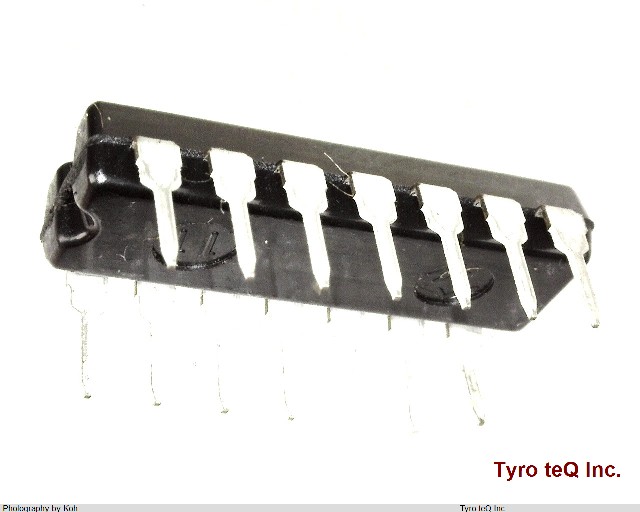

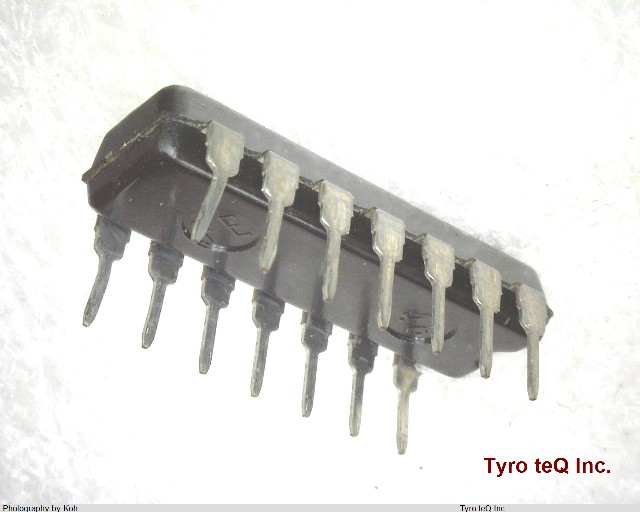

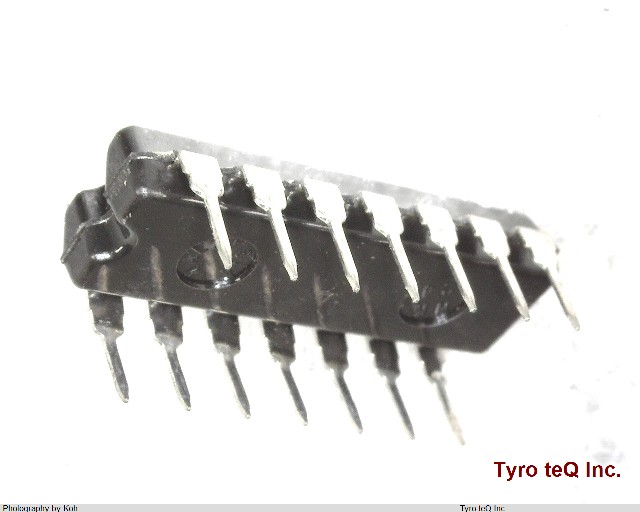

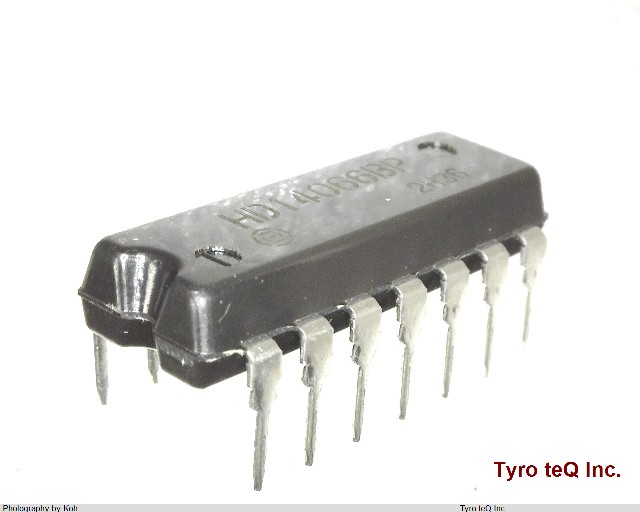

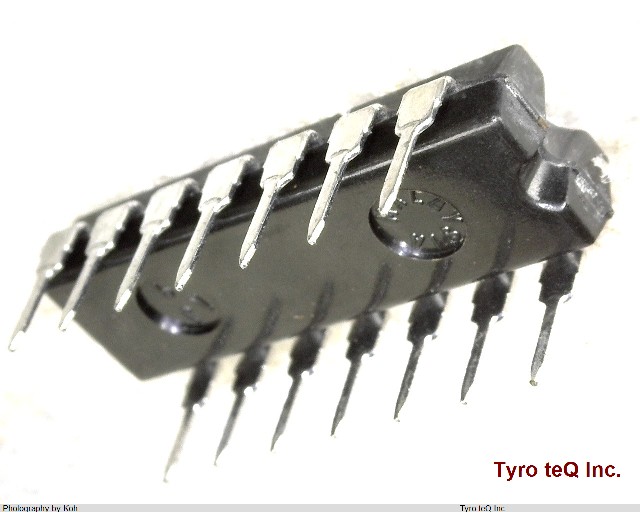

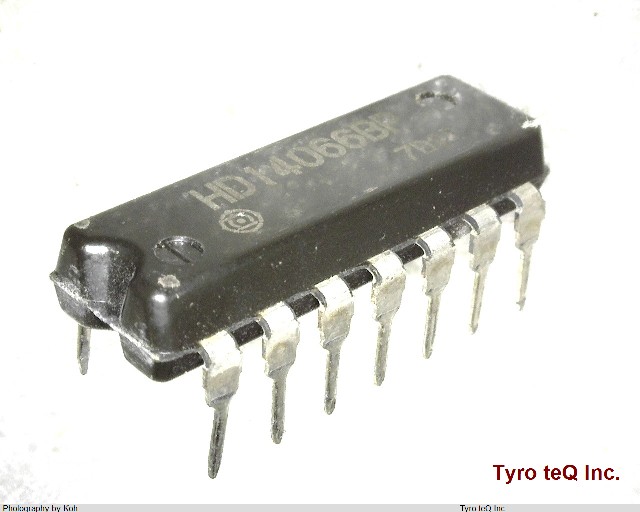

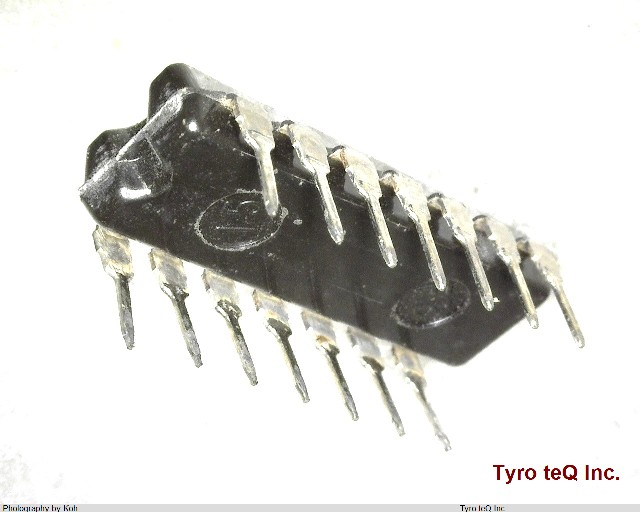

HD14066BP

Name: HD14066BP
Brand: HITACHI
SKU: 180000154-0000-0000-0000

HD14066BP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|4回路バイラテラル・スイッチ（アナログスイッチ） | 14ピン|パーッケージ：DIP

HD14066BP の詳細情報

型番	HD14066BP
メーカー	HITACHI
種別	CMOS標準ロジックIC
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.2 mm
Normal Position	NO V
Number of Channels	1
Number of Functions	4
Number of Terminals	14
On-state Resistance Match-Nom	25 ohm
On-state Resistance-Max (Ron)	1050 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	100 ns
Switch-on Time-Max	180 ns
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
