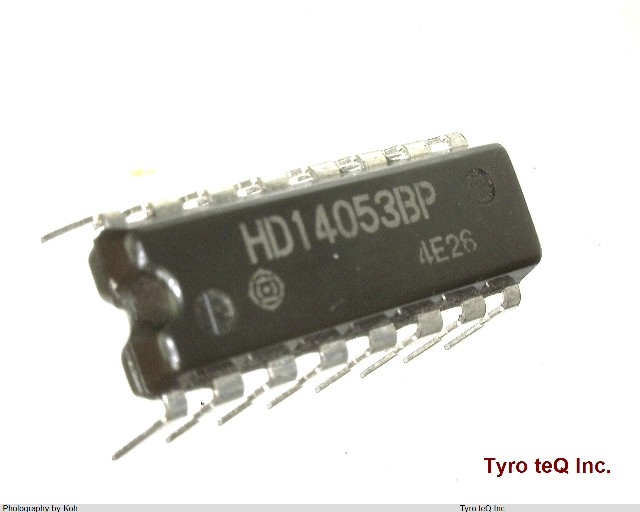

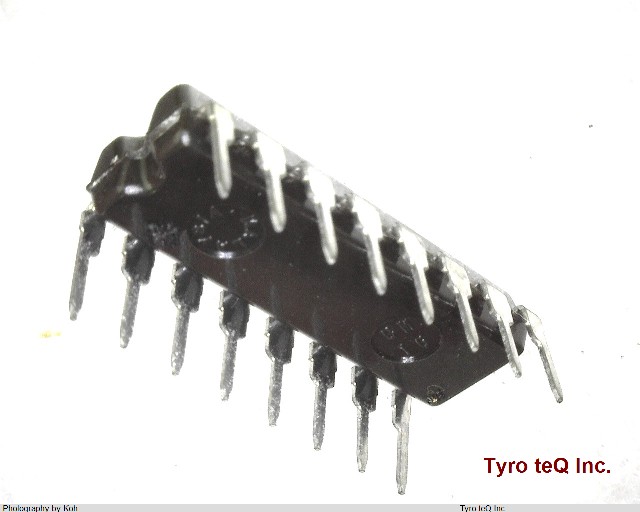

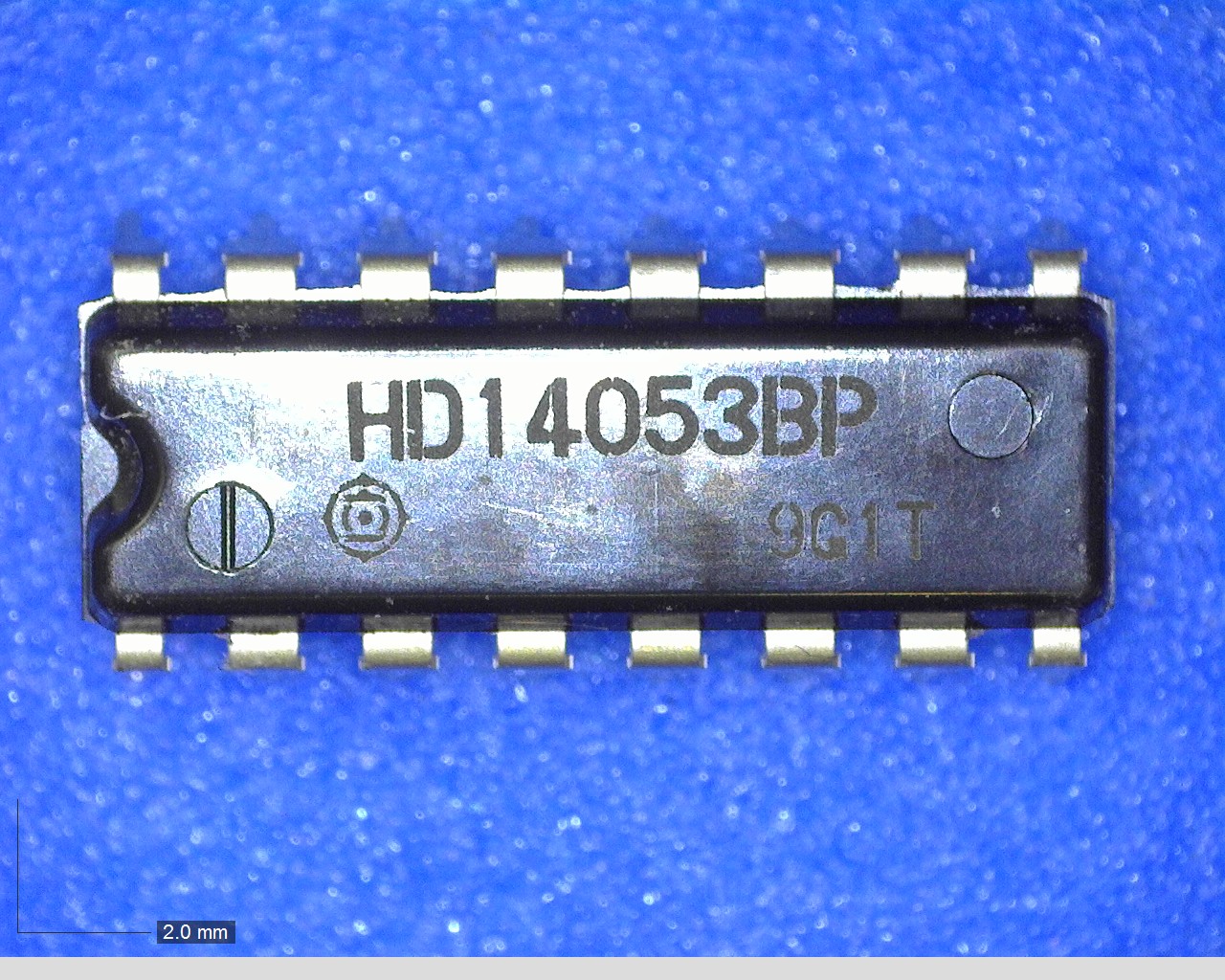

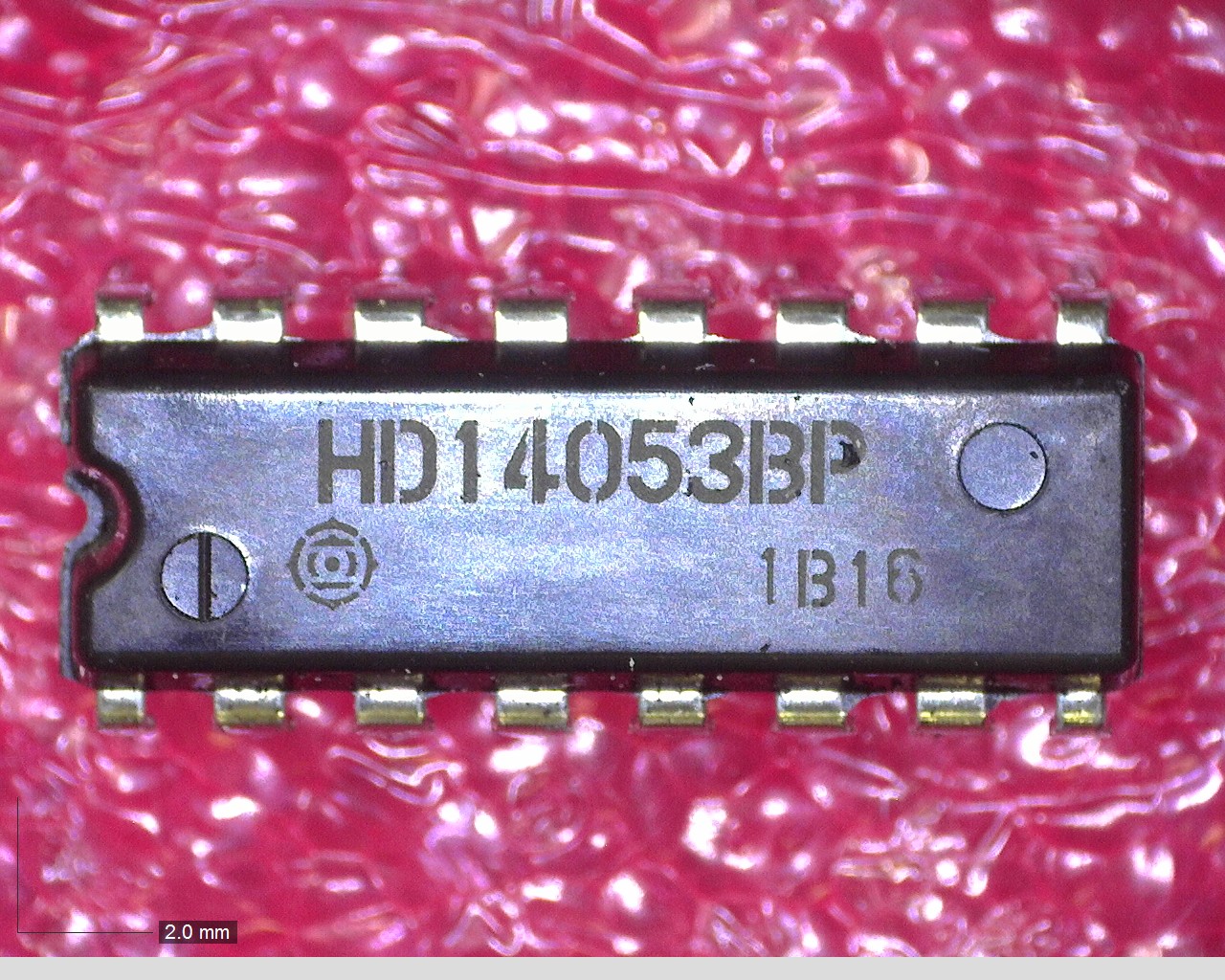

HD14053BP

Name: HD14053BP
Brand: HITACHI
SKU: 180150639-0000-0000-0000

HD14053BP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|3回路2chアナログ・マルチプレクサ/デマルチプレクサ（アナログスイッチ） | 16ピン|パーッケージ：DIP

HD14053BP の詳細情報

型番	HD14053BP
メーカー	HITACHI
種別	CMOS標準ロジックIC
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
JESD-30 Code	R-PDIP-T16
Length	19.2 mm
Number of Channels	2
Number of Functions	3
Number of Terminals	16
On-state Resistance Match-Nom	25 ohm
On-state Resistance-Max (Ron)	1050 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	2500 ns
Switch-on Time-Max	2500 ns
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
