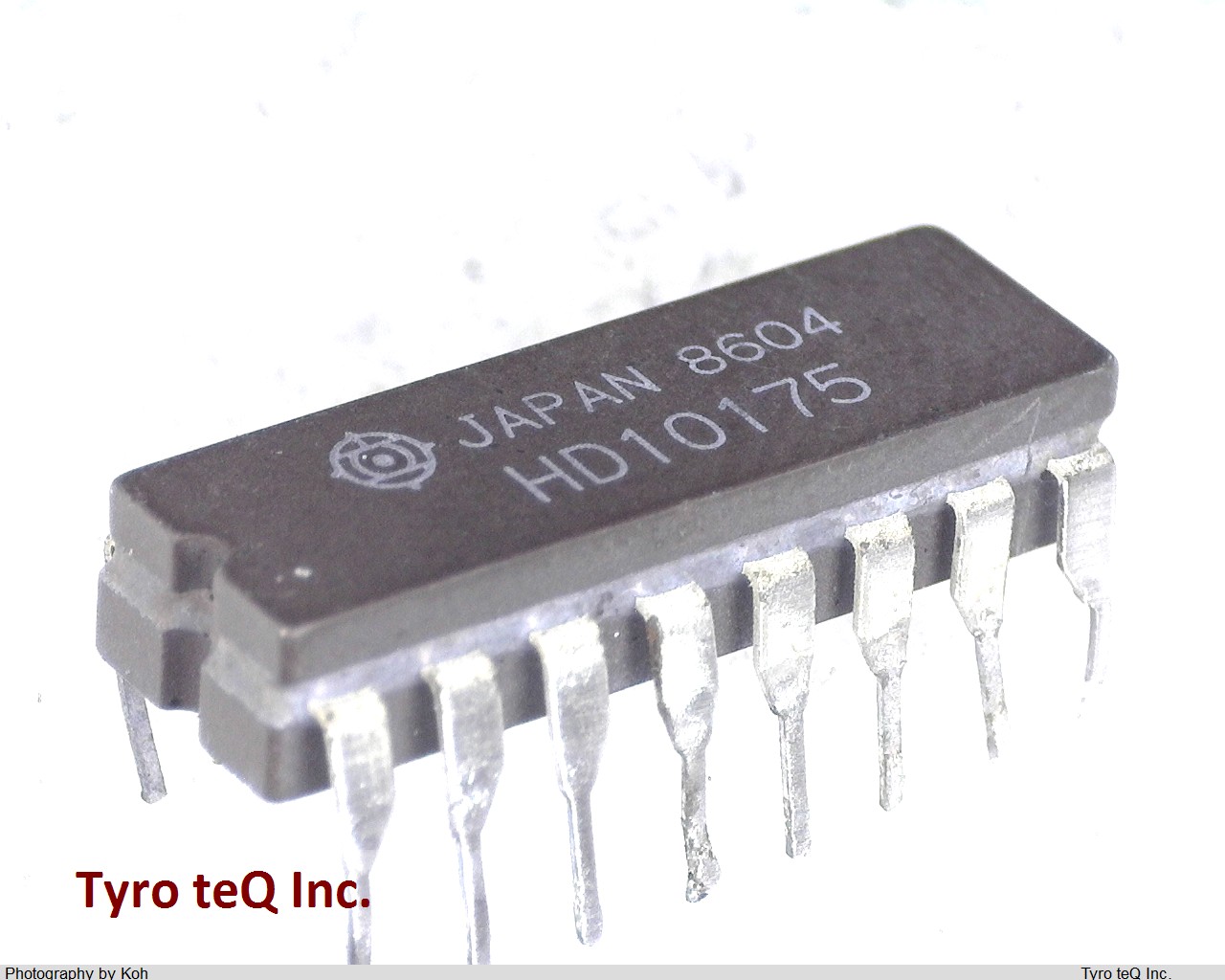

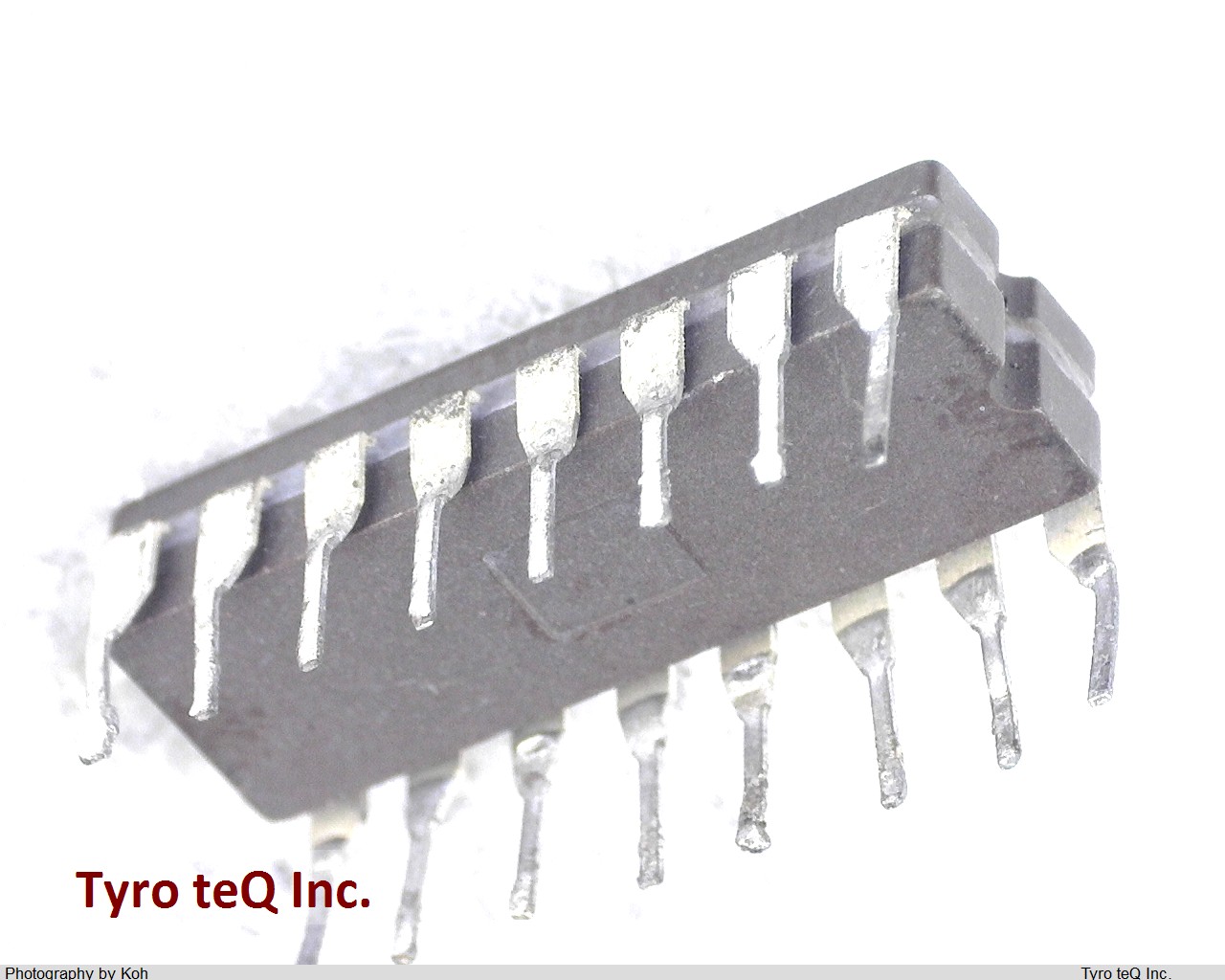

HD10175

Name: HD10175
Brand: HITACHI
SKU: 180010642-0000-0000-0000

HD10175 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HD10175 の詳細情報

型番	HD10175
メーカー	HITACHI
Additional Feature	WITH DUAL LATCH ENABLE; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH
Family	10K
JESD-30 Code	R-GDIP-T16
JESD-609 Code	e0
Length	19.3 mm
Logic IC Type	D LATCH
Number of Bits	5
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Characteristics	OPEN-EMITTER
Output Polarity	TRUE
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	-5.2 V
Power Supply Current-Max (ICC)	97 mA
Propagation Delay (tpd)	4.7 ns
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Sub Category	FF/Latches
Surface Mount	NO
Technology	ECL
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Trigger Type	LOW LEVEL
Width	7.62 mm
