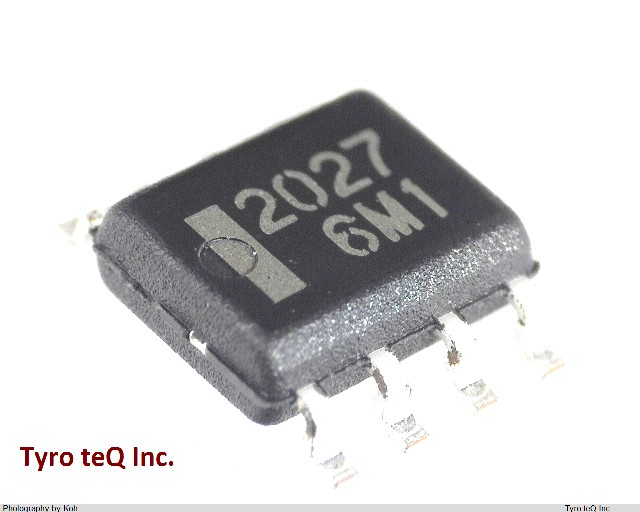

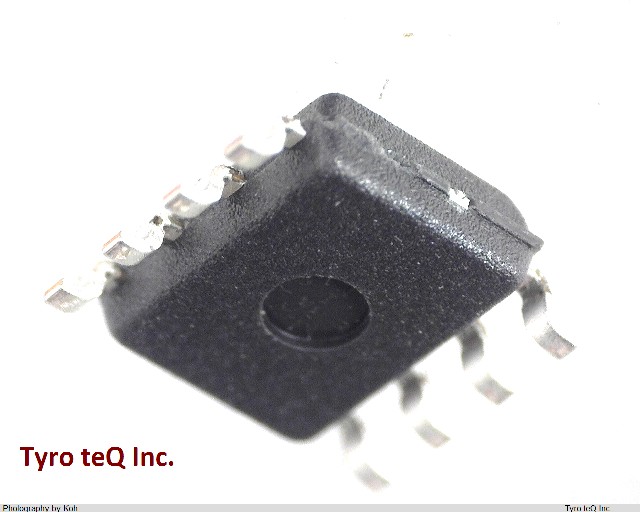

HAT2027R-EL

Name: HAT2027R-EL
Brand: HITACHI
SKU: 180009341-0000-0000-0000

HAT2027R-EL - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HAT2027R-EL の詳細情報

型番	HAT2027R-EL
メーカー	HITACHI
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	20 V
Drain Current-Max (Abs) (ID)	7 A
Drain Current-Max (ID)	7 A
Drain-source On Resistance-Max	0.053 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e6
Moisture Sensitivity Level	1
Number of Elements	2
Number of Terminals	8
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	3 W
Pulsed Drain Current-Max (IDM)	56 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transistor Application	SWITCHING
Transistor Element Material	SILICON
