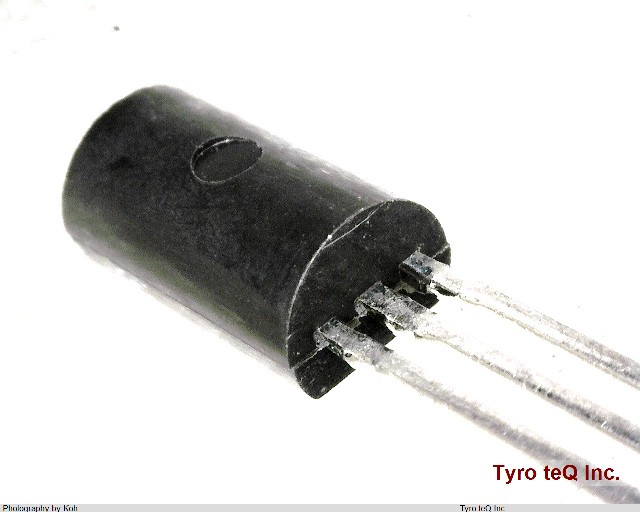

HA179L05

Name: HA179L05
Brand: HITACHI
SKU: 180148276-0000-0000-0000

HA179L05 - HITACHI の商品詳細ページです。

No Image

２営業日以内に回答いたします

HA179L05 の詳細情報

型番	HA179L05
メーカー	HITACHI
Adjustability	FIXED
Dropout Voltage1-Nom	1.3 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	20 V
Input Voltage-Min	7 V
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Length	4.5 mm
Line Regulation-Max	0.15 %
Load Regulation-Max	0.06 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	85 Cel
Operating Temperature, TJ-Min	-20 Cel
Output Current1-Max	0.15 A
Output Voltage1-Max	5.2 V
Output Voltage1-Min	4.75 V
Output Voltage1-Nom	-5 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-92
Package Equivalence Code	SIP3,.1,50
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.6 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	FLAT
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	20
Voltage Tolerance-Max	4 %
Width	2.5 mm
