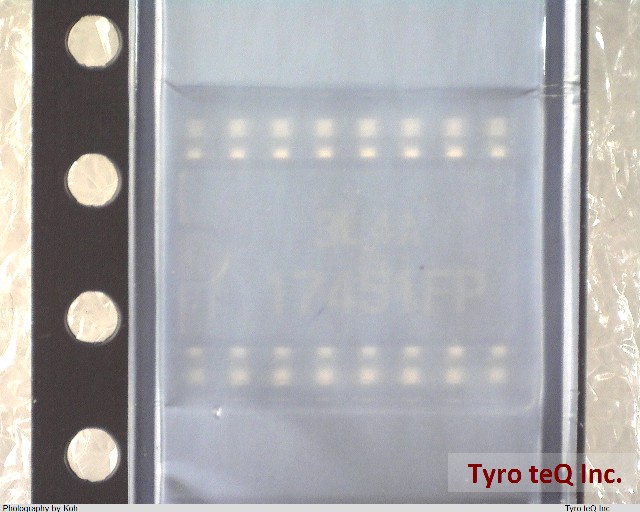

HA17451FP

Name: HA17451FP
Brand: HITACHI
SKU: 180008907-0000-0000-0000

HA17451FP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HA17451FP の詳細情報

型番	HA17451FP
メーカー	HITACHI
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	3 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.06 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	0.05 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	2.2 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	2.6 mA
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	500 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.5 mm
