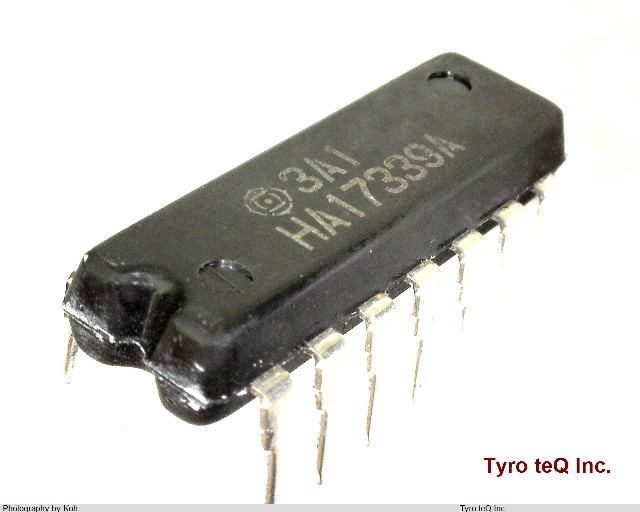

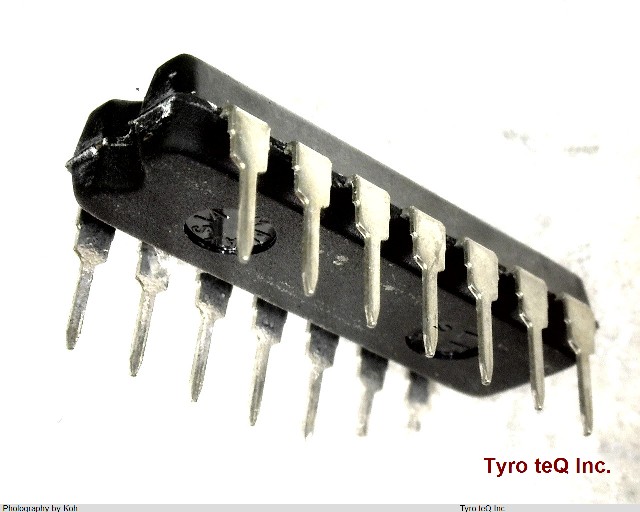

HA17339AP

Name: HA17339AP
Brand: HITACHI
SKU: 180151994-0000-0000-0000

HA17339AP - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HA17339AP の詳細情報

型番	HA17339AP
メーカー	HITACHI
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.2 mm
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Response Time-Nom	1300 ns
Seated Height-Max	5.06 mm
Sub Category	Comparator
Supply Current-Max	2 mA
Supply Voltage Limit-Max	36 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
