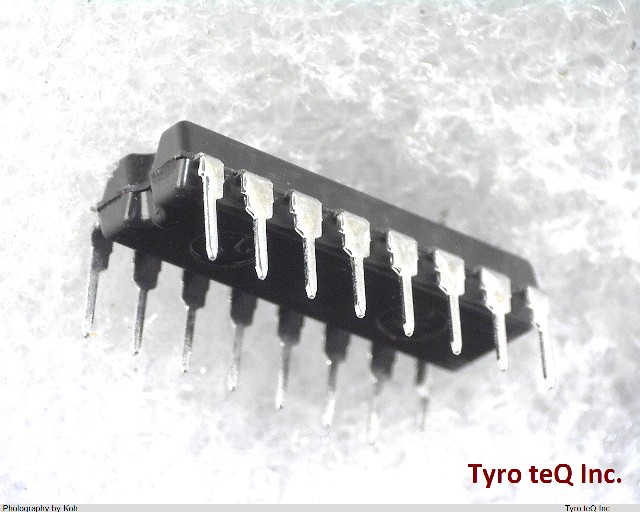

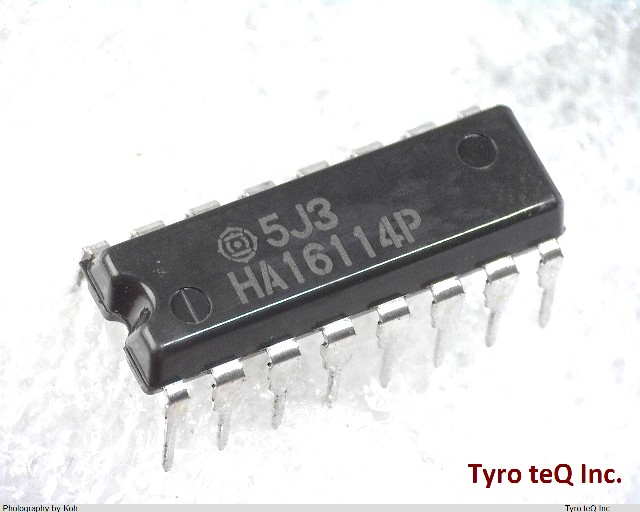

HA16114P

Name: HA16114P
Brand: HITACHI
SKU: 180151988-0000-0000-0000

HA16114P - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HA16114P の詳細情報

型番	HA16114P
メーカー	HITACHI
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	3.9 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	5.06 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	NO
Switcher Configuration	SINGLE
Switching Frequency-Max	600 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
