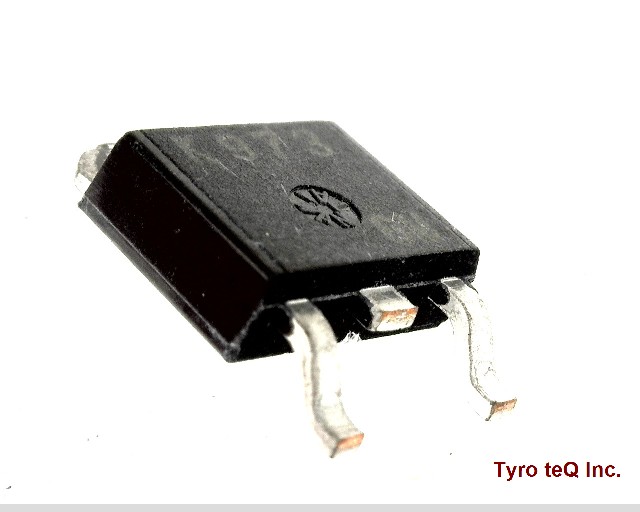

2SK973S

Name: 2SK973S
Brand: HITACHI
SKU: 400068680-0000-0000-0000

2SK973S - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

2SK973S の詳細情報

型番	2SK973S
メーカー	HITACHI
種別	Nチャネルトランジスタ
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	2 A
Drain Current-Max (ID)	2 A
Drain-source On Resistance-Max	0.5 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSSO-G2
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	10 W
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	20
Transistor Application	SWITCHING
Transistor Element Material	SILICON
