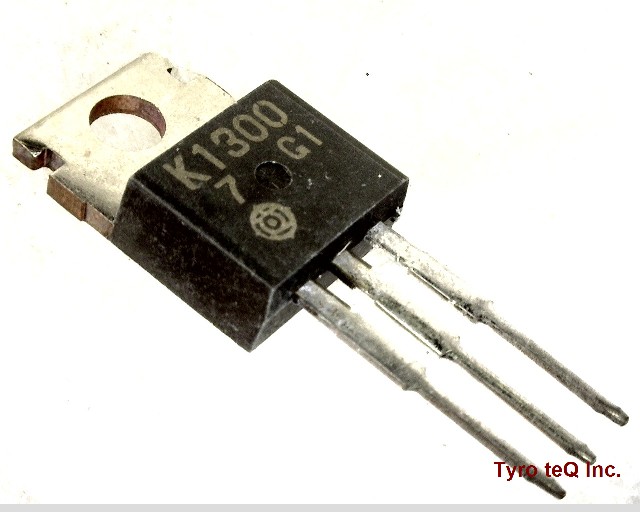

2SK1300

Name: 2SK1300
Brand: HITACHI
SKU: 400068942-0000-0000-0000

2SK1300 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

2SK1300 の詳細情報

型番	2SK1300
メーカー	HITACHI
種別	Nチャネルトランジスタ
Application	SWITCHING
Case Connection	DRAIN
Configuration	SINGLE
DLA Qualification	Not Qualified
DS Breakdown Voltage-Min	100 V
DS Breakdown Voltage-Min (V)	100
Drain Current-Max (Abs) (ID)	10 A
Drain Current-Max (Abs) (ID) (A)	10
Drain Current-Max (ID)	10 A
Drain Current-Max (ID) (A)	10
Drain-source On Resistance-Max	0.35 ohm
Drain-source On Resistance-Max (ohm)	0.35
FET Technology	METAL-OXIDE SEMICONDUCTOR
J-STD-609 Code	e2
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Max (Cel)	150
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	40 W
Power Dissipation-Max (W)	40
Pulsed Drain Current-Max (IDM)	40 A
Pulsed Drain Current-Max (IDM) (A)	40
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	TIN COPPER
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
