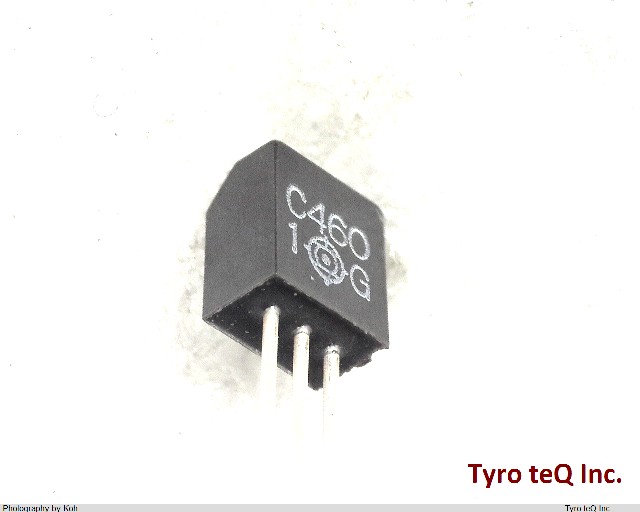

2SC460

Name: 2SC460
Brand: HITACHI
SKU: 30252107-0000-0000-0000

2SC460 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

NPN型バイポーラトランジスタ | 高周波用

2SC460 の詳細情報

型番	2SC460
メーカー	HITACHI
種別	バイポーラトランジスタ
Additional Feature	HIGH RELIABILITY
Case Connection	COLLECTOR
Collector Current-Max (IC)	0.1 A
Collector-base Capacitance-Max	3.5 pF
Collector-emitter Voltage-Max	30 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	8
Highest Frequency Band	HIGH FREQUENCY BAND
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	10 W
Power Dissipation-Max (Abs)	0.2 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	3 MHz
Turn-off Time-Max (toff)	3300 ns
Turn-on Time-Max (ton)	500 ns
VCEsat-Max	0.5 V
