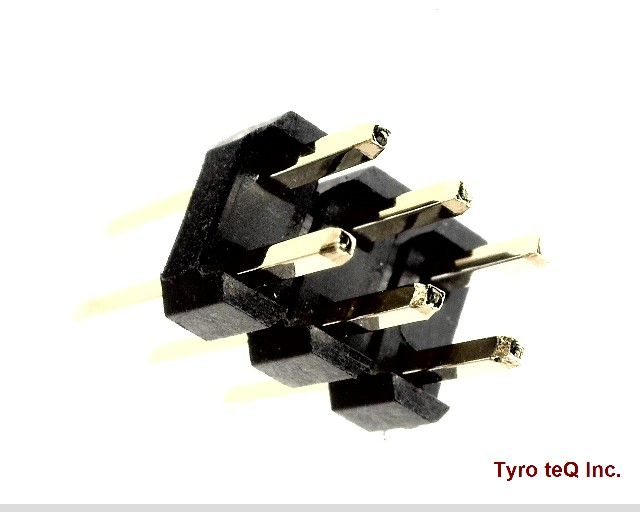

PSS-420256-03

Name: PSS-420256-03
Brand: HIROSUGI
SKU: 400095681-0000-0000-0000

PSS-420256-03 - HIROSUGI の商品詳細ページです。

２営業日以内に回答いたします

PSS-420256-03 の詳細情報

型番	PSS-420256-03
メーカー	HIROSUGI
Body Breadth	0.197 inch
Body Depth	0.098 inch
Connector Type	BOARD STACKING CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Filter Feature	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	FLASH inch
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	6
UL Flammability Code	94V-0
