ZX62-B-5PA(33) データシート

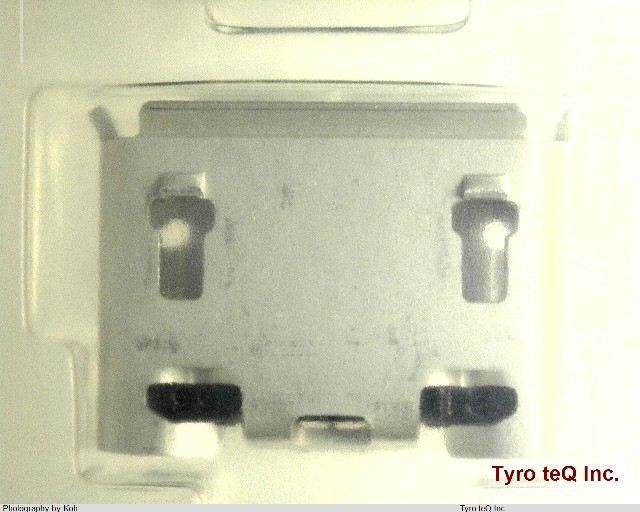

Name: ZX62-B-5PA(33)
Brand: HIROSE
SKU: 360045881-0000-0000-0000

ZX62-B-5PA(33) - HIROSE の商品詳細ページです。

No Image

２営業日以内に回答いたします

ZX62-B-5PA(33) の詳細情報

型番	ZX62-B-5PA(33)
メーカー	HIROSE
データシート
Body Breadth	0.11 inch
Body Depth	0.22 inch
Body Length	0.307 inch
Body/Shell Style	RECEPTACLE
Connector Type	USB CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	MICRO USB2.0 B
DIN Conformance	NO
Dielectric Withstanding Voltage	100VAC V
Durability	10000 Cycles
Empty Shell	NO
Filter Feature	YES
IEC Conformance	NO
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number Of PCB Rows	1
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	29.5u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Shell Finish	TIN
Shell Material	STAINLESS STEEL
Terminal Pitch	0.65 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	5
UL Flammability Code	94V-0
