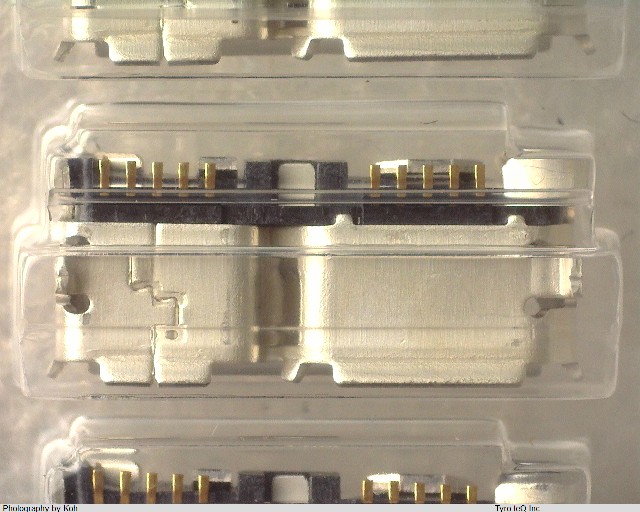

ZX360D-B-10P データシート

Name: ZX360D-B-10P
Brand: HIROSE
SKU: 360045191-0000-0000-0000

ZX360D-B-10P - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

ZX360D-B-10P の詳細情報

型番	ZX360D-B-10P
メーカー	HIROSE
データシート
Additional Feature	2 PORT, 5 POSITION EACH
Body/Shell Style	RECEPTACLE
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	30 mohm
Contact Style	USB, SER B SQ
DIN Conformance	NO
Dielectric Withstanding Voltage	100VAC V
Durability	10000 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	LIQUID CRYSTAL POLYMER
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	TIN
Shell Material	STAINLESS STEEL
Sub Category	Telecom and Datacom Connectors
Termination Type	SURFACE MOUNT
Total Number of Contacts	10
UL Flammability Code	94V-0
