UX60MB5ST データシート

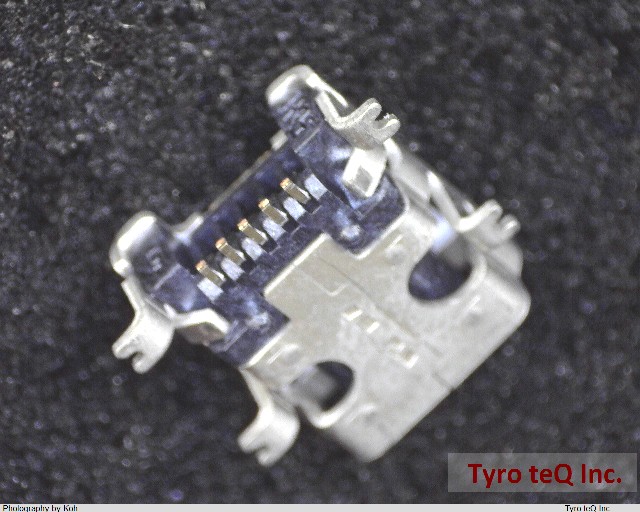

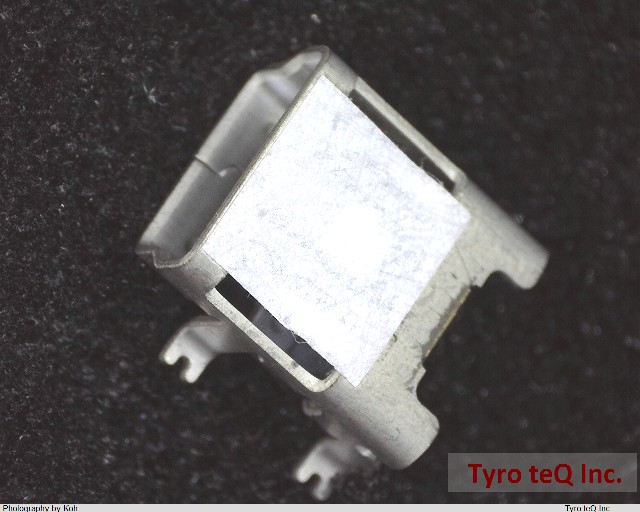

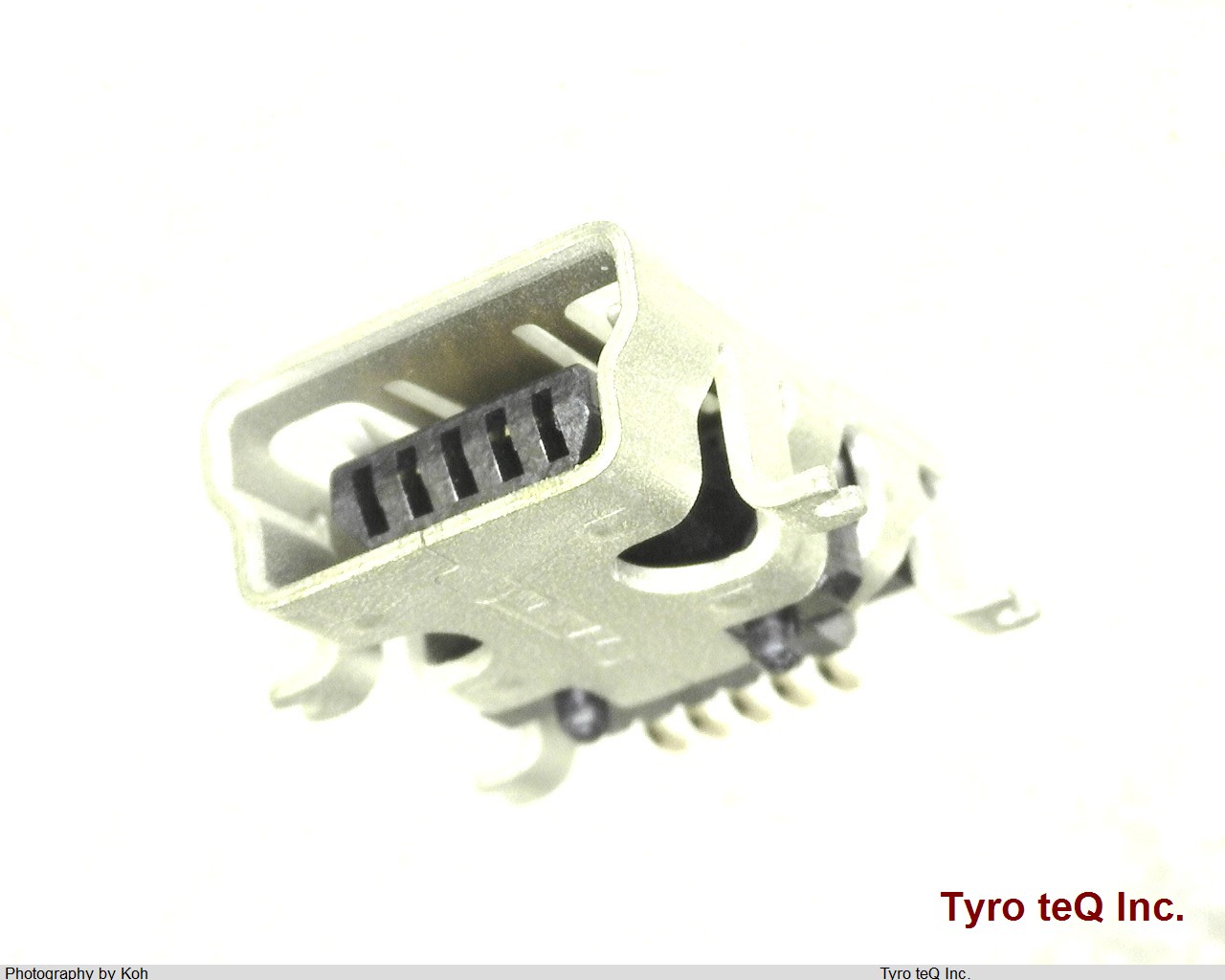

Name: UX60MB5ST
Brand: HIROSE
SKU: 310030171-0000-0000-0000

UX60MB5ST - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

UX60MB5ST の詳細情報

型番	UX60MB5ST
メーカー	HIROSE
データシート
Additional Feature	SHIELDED
Board Mounting Option	SOLDER HOLDING FLANGE
Body Breadth	0.156 inch
Body Depth	0.354 inch
Body Length	0.303 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	TIN
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	USB, SER A FLAT
DIN Conformance	NO
Dielectric Withstanding Voltage	100VAC V
Durability	5000 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	7.1168 N
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e3
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	29.5u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Shell Finish	TIN
Shell Material	COPPER ALLOY
Terminal Pitch	.7874 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	5
UL Flammability Code	94V-0
Withdrawl Force-Min	1.39 N
