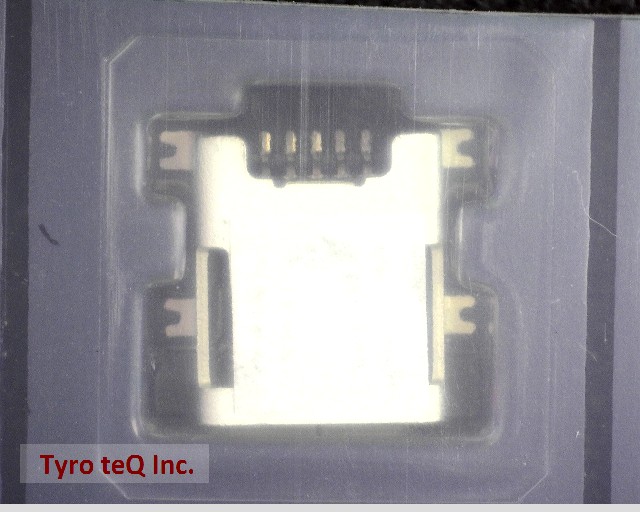

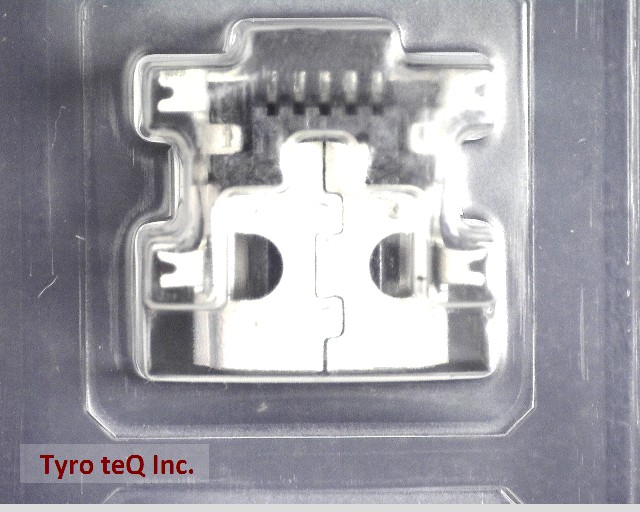

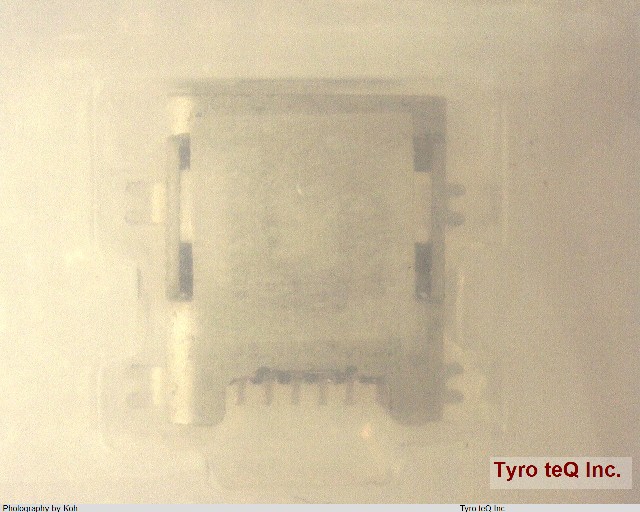

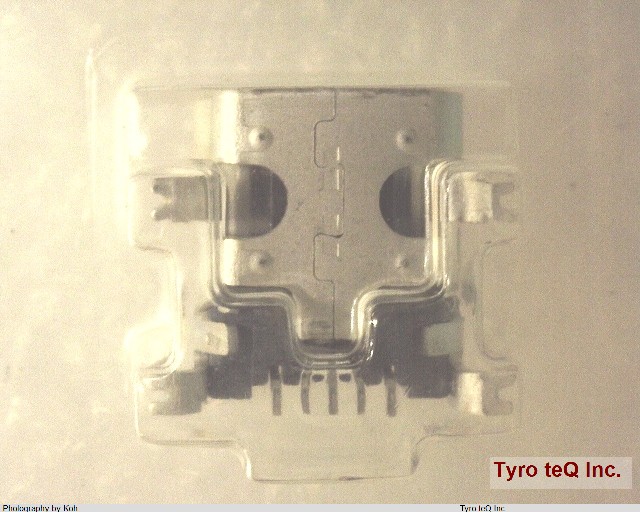

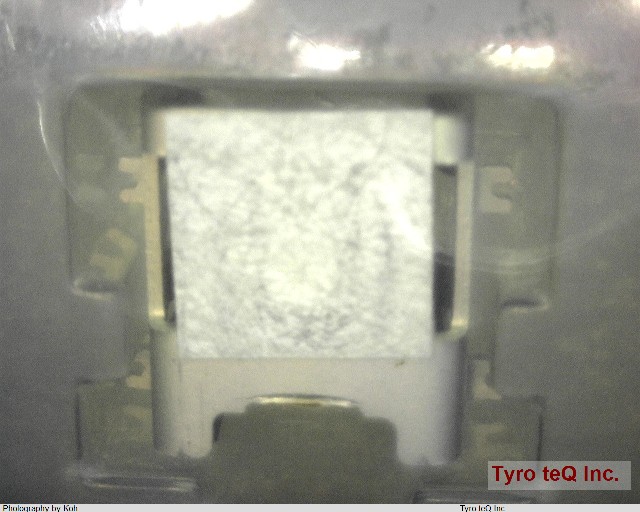

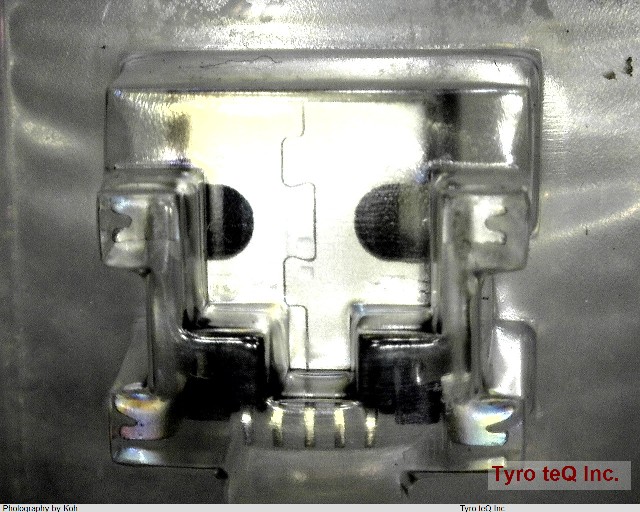

UX60A-MB-5ST データシート

Name: UX60A-MB-5ST
Brand: HIROSE
SKU: 310094429-0000-0000-0000

UX60A-MB-5ST - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

UX60A-MB-5ST の詳細情報

型番	UX60A-MB-5ST
メーカー	HIROSE
データシート
Additional Feature	SHEILDED
Board Mounting Option	SOLDER HOLDING FLANGE
Body Breadth	0.156 inch
Body Depth	0.354 inch
Body Length	0.303 inch
Body/Shell Style	RECEPTACLE
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	TIN
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	USB, SER A FLAT
DIN Conformance	NO
Dielectric Withstanding Voltage	100VAC V
Durability	5000 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	7.1168 N
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e3
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	29.5u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Shell Finish	TIN
Shell Material	COPPER ALLOY
Terminal Pitch	.7874 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	5
UL Flammability Code	94V-0
Withdrawl Force-Min	1.39 N
