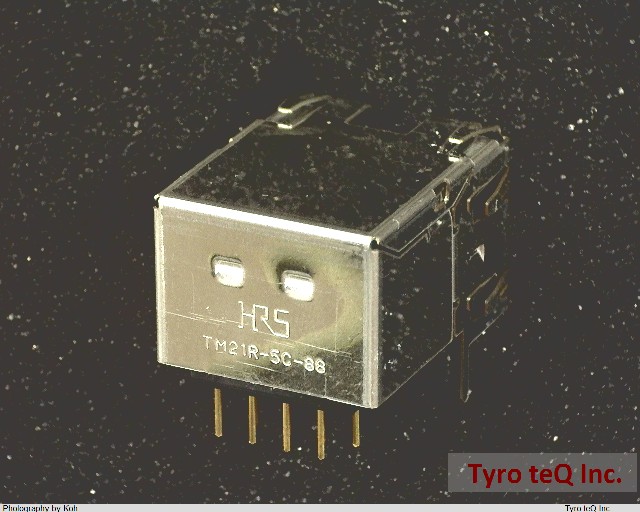

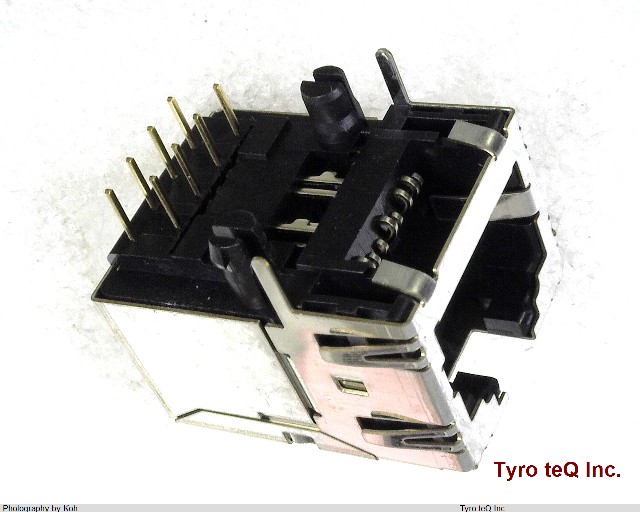

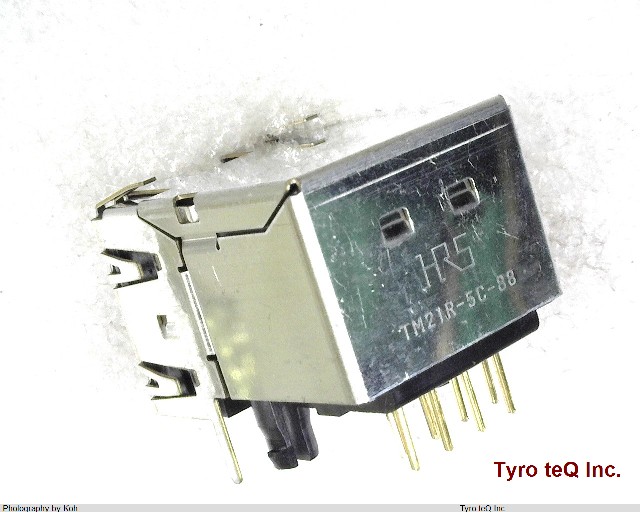

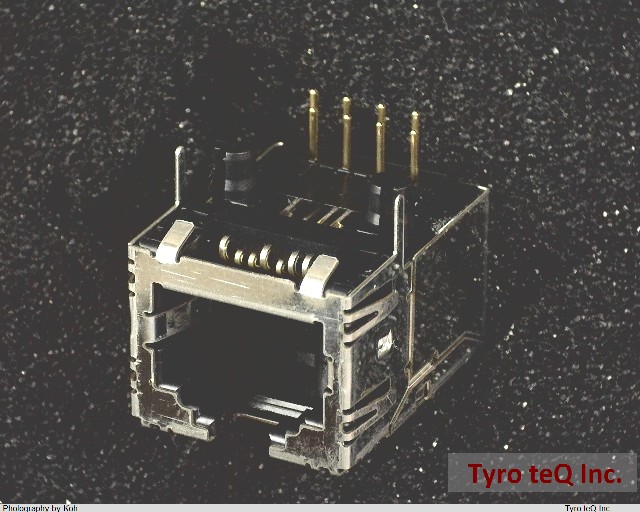

TM21R-5C-88 データシート

Name: TM21R-5C-88
Brand: HIROSE
SKU: 300232451-0000-0000-0000

TM21R-5C-88 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

TM21R-5C-88 の詳細情報

型番	TM21R-5C-88
メーカー	HIROSE
データシート
Additional Feature	EMI SHIELDED TYPE
Board Mounting Option	HOLE 0.126
Body Breadth	0.541 inch
Body Depth	0.827 inch
Body Length	0.63 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	230 mohm
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	200 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e0
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Plating Thickness	50u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	TIN
Shell Material	COPPER ALLOY
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.142 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
