TM11R-5M2-88-LP データシート

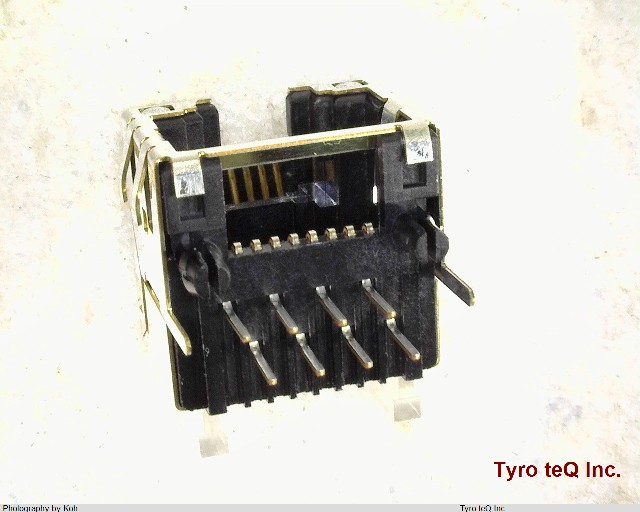

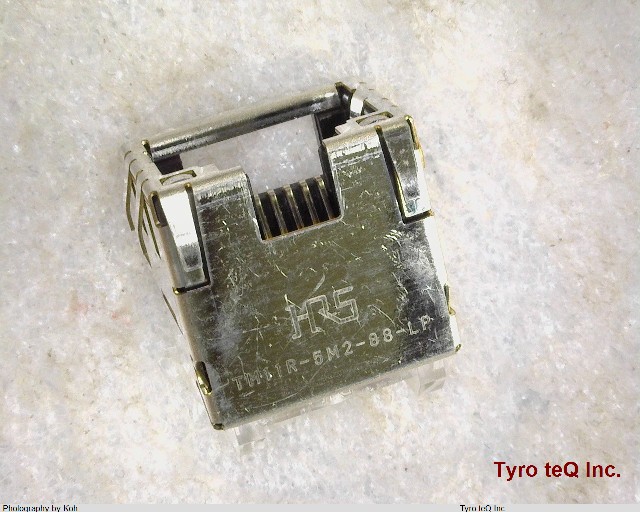

Name: TM11R-5M2-88-LP
Brand: HIROSE
SKU: 300256902-0000-0000-0000

TM11R-5M2-88-LP - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

TM11R-5M2-88-LP の詳細情報

型番	TM11R-5M2-88-LP
メーカー	HIROSE
データシート
Additional Feature	EMI SHIELDED
Board Mounting Option	PEG
Body Breadth	0.453 inch
Body Depth	0.571 inch
Body Length	0.591 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	Tin (Sn) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	230 mohm
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	200 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e2
MIL Conformance	NO
Manufacturer Series	TM11R
Mating Information	TM21P-88P
Mixed Contacts	NO
Mounting Option 1	GUIDE SLOT
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Ports	1
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Rated Current (Signal)	1 A
Reference Standard	FCC; UL
Reliability	COMMERCIAL
Shell Finish	TIN
Shell Material	COPPER ALLOY
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
