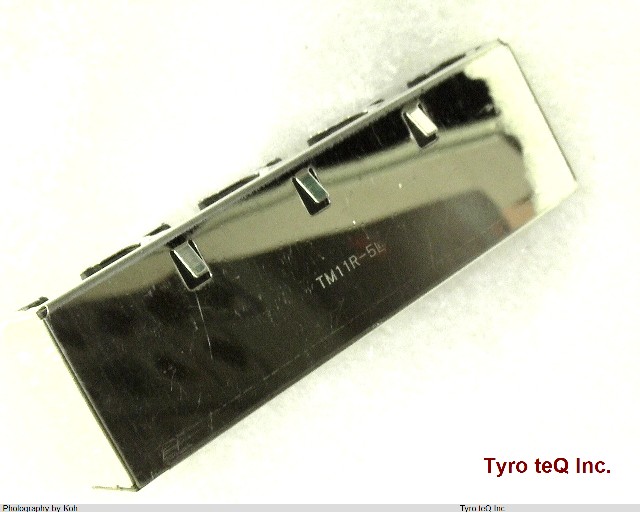

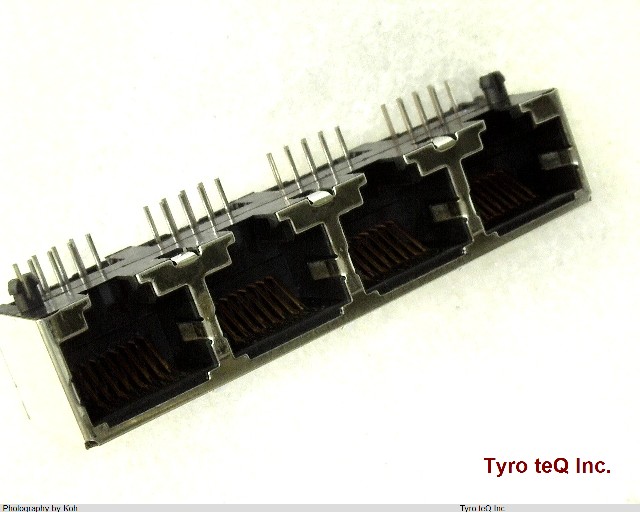

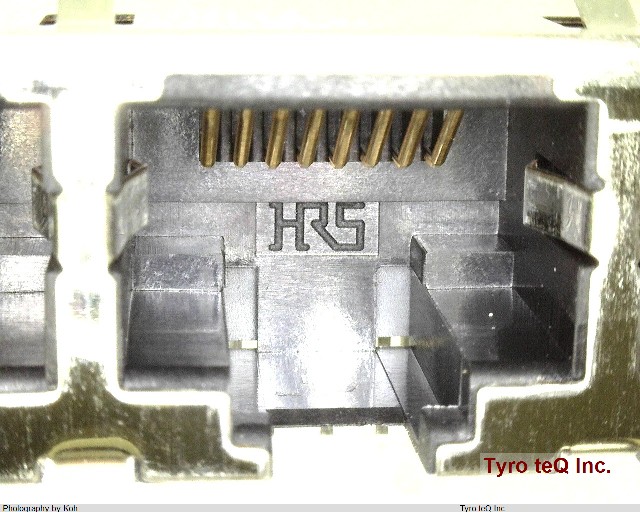

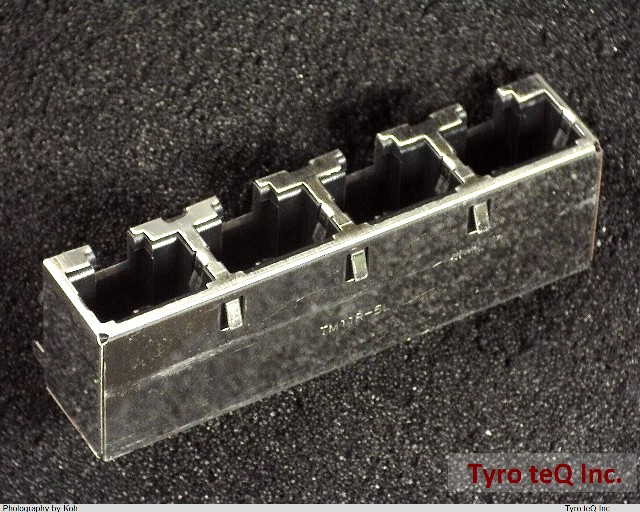

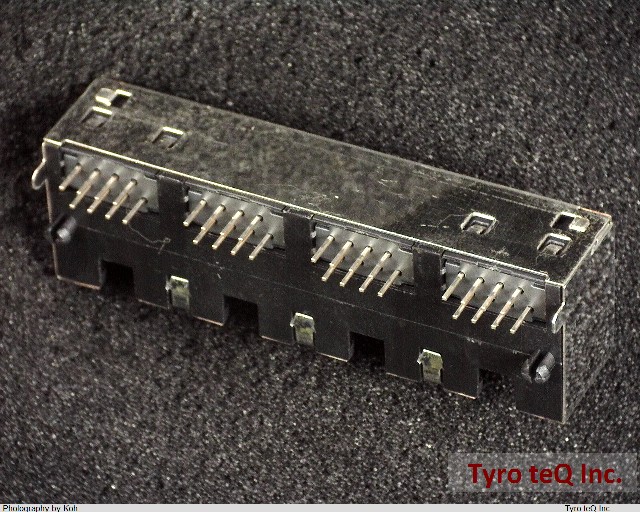

TM11R-5L-3232 データシート

Name: TM11R-5L-3232
Brand: HIROSE
SKU: 300281578-0000-0000-0000

TM11R-5L-3232 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

TM11R-5L-3232 の詳細情報

型番	TM11R-5L-3232
メーカー	HIROSE
データシート
Additional Feature	EMI PROTECTED
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.469 inch
Body Depth	0.693 inch
Body Length	2.228 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	TM11P1-88P
Mixed Contacts	NO
Mounting Option 1	GUIDE SLOT
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Ports	4
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.126 inch
Terminal Pitch	2.032 mm
Termination Type	SOLDER
Total Number of Contacts	32
