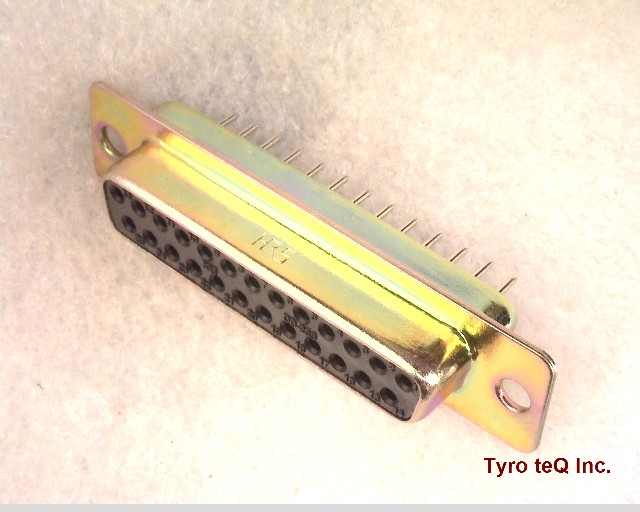

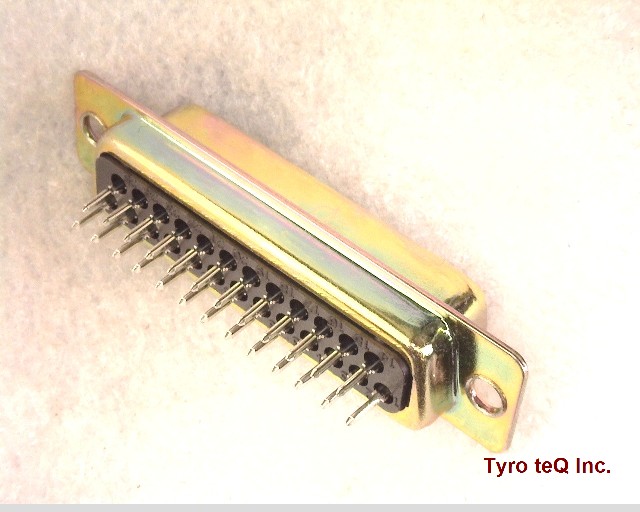

SDBB-25S(55) データシート

Name: SDBB-25S(55)
Brand: HIROSE
SKU: 290437669-0000-0000-0000

SDBB-25S(55) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

ニッケルめっき,ディップ部:金フラッシュめっき

SDBB-25S(55) の詳細情報

型番	SDBB-25S(55)
メーカー	HIROSE
データシート
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	GOLD FLASH
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	15 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1750VAC V
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.8448 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.157 inch
Terminal Pitch	2.7686 mm
Termination Type	SOLDER
Total Number of Contacts	25
