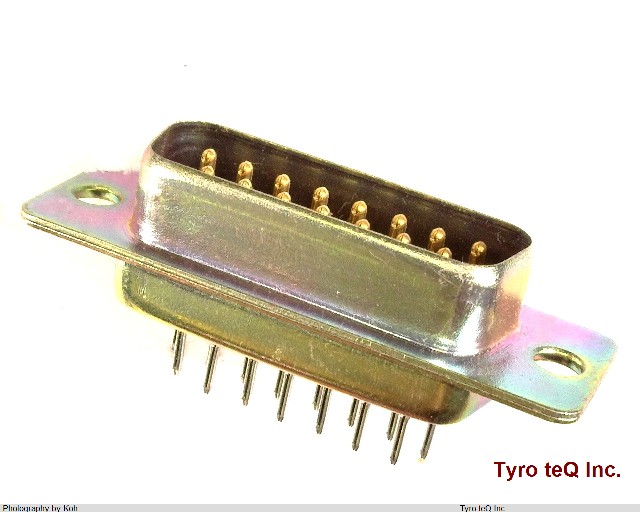

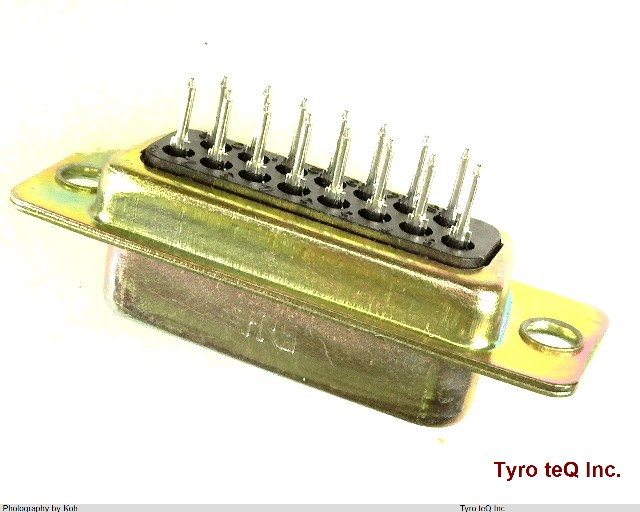

SDAB-15P データシート

Name: SDAB-15P
Brand: HIROSE
SKU: 290445188-0000-0000-0000

SDAB-15P - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

SDAB-15P の詳細情報

型番	SDAB-15P
メーカー	HIROSE
データシート
Additional Feature	HIGH DENSITY, PANEL MOUNT
Body Breadth	0.494 inch
Body Depth	0.272 inch
Body Length	1.541 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	15 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	SD
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	HOLE .115-.125
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.8448 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	DICHROMATE
Shell Material	STEEL
Shell Size	2/A
Sub Category	D Type Connectors
Terminal Length	0.157 inch
Terminal Pitch	2.7432 mm
Termination Type	SOLDER
Total Number of Contacts	15
UL Flammability Code	94V-0
